Technical Specifications
Picture/Display
LCD panel type - IPS technology
Backlight type - W-LED system
Panel Size - 23.8 inch/60.5 cm
Display Screen Coating - Anti-Glare, 3H, Haze 25%
Effective viewing area - 527.04 (H) x 296.46 (V)
Aspect ratio - 16:9
Maximum resolution - 1920 x 1080 @ 75 Hz*
Pixel Density - 92.56 PPI
Response time (typical) - 4 ms (Grey to Grey)*
MPRT - 1 ms
Brightness
300 cd/m²
Contrast ratio (typical) - 1000:1
SmartContrast - Mega Infinity DCR
Pixel pitch - 0.2745 x 0.2745 mm
Viewing angle - 178º (H) / 178º (V) - @ C/R > 10
Flicker-free - Yes
Picture enhancement - SmartImage game
Colour gamut (typical) - NTSC 104.8%*, sRGB 120.9%*
Display colours - 16.7 M
Scanning Frequency - 30–85 kHz (H) / 48–75 Hz (V)
LowBlue Mode - Yes
EasyRead - Yes
sRGB - Yes
AMD FreeSync™ technology - Yes
Connectivity
Signal Input - HDMI 1.4 x 1, USB-C 3.2 Gen 1 x 1 (upstream, Power Delivery up to 65 W)
USB: - USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)
Sync Input - Separate Sync
Audio (In/Out) - Audio out
USB
USB-C - Reversible plug connector
Super speed - Data and Video transfer
DP - Built-in Display Port Alt mode
Power delivery - USB PD version 3.0
USB-C max. power delivery - Up to 65 W (5V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A)
Convenience
Built-in Speakers - 3 W x 2
User convenience - Power On/Off - Menu - Volume - Input - Smart Image Game
OSD Languages
Brazil Portuguese
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Ukrainian
Other convenience - Kensington lock - VESA mount (100 x 100 mm)
Plug and Play Compatibility - DDC/CI - Mac OS X - sRGB - Windows 10 / 8.1 / 8 / 7
Stand

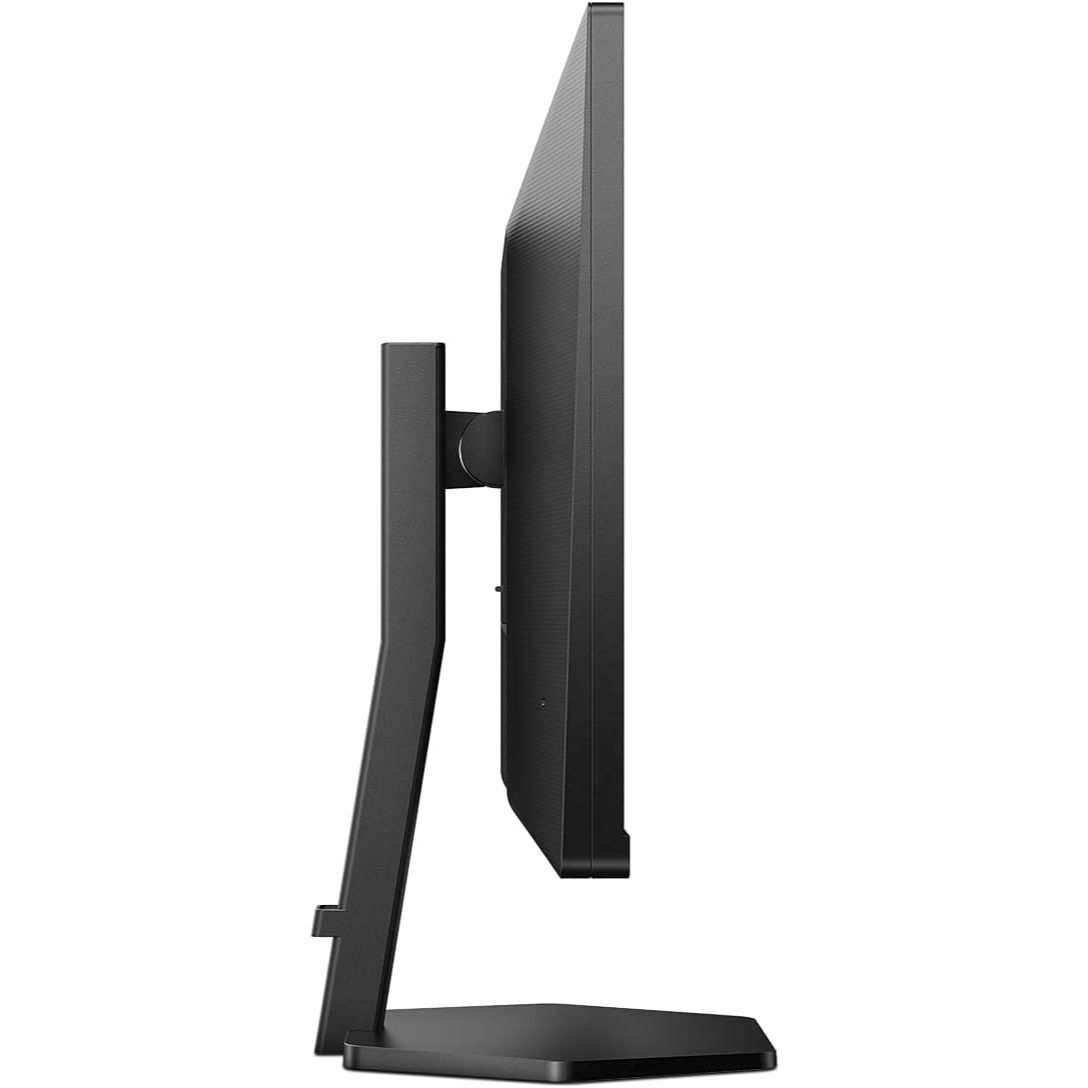

Tilt - -5/20 degree
Power
On mode - 21.6 W (typ.)
Standby mode -0.5 W (typ.)
Off mode - 0.3 W (typ.)
Energy Label Class - E
Power LED indicator - Operation - White - Standby mode - White (flashing)
Power supply - External - 100–240 VAC, 50–60 Hz
Dimensions
Product with stand (max height) - 540 x 417 x 183 mm
Product without stand (mm) - 540 x 321 x 43 mm
Packaging in mm (W x H x D) - 600 x 526 x 125 mm
Weight
Product with stand (kg) - 4.12 kg
Product without stand (kg) - 2.70 kg
Product with packaging (kg ) - 7.25 kg
Operating conditions
Temperature range (operation) - 0 to 40 °C
Temperature range (storage) - -20 to 60 °C
Relative humidity -20%-80 %
Altitude - Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)
MTBF - 50,000 hrs (excluding backlight) hour(s)
Sustainability
Environmental and energy -RoHS
Recyclable packaging material -100 %
Specific Substances - Mercury free
PVC/BFR free housing
Compliance and standards
Regulatory Approvals -
CB
CE Mark
CU-EAC
EAEU RoHS
FCC Class B
ICES-003
TUV/ISO9241-307
TUV-BAUART
Cabinet
Colour -Black
Finish - Textured
What's in the box?
Monitor with stand - Yes
Cables - HDMI cable, USB-C to USB-C cable, Power cable
User Documentation - Yes
