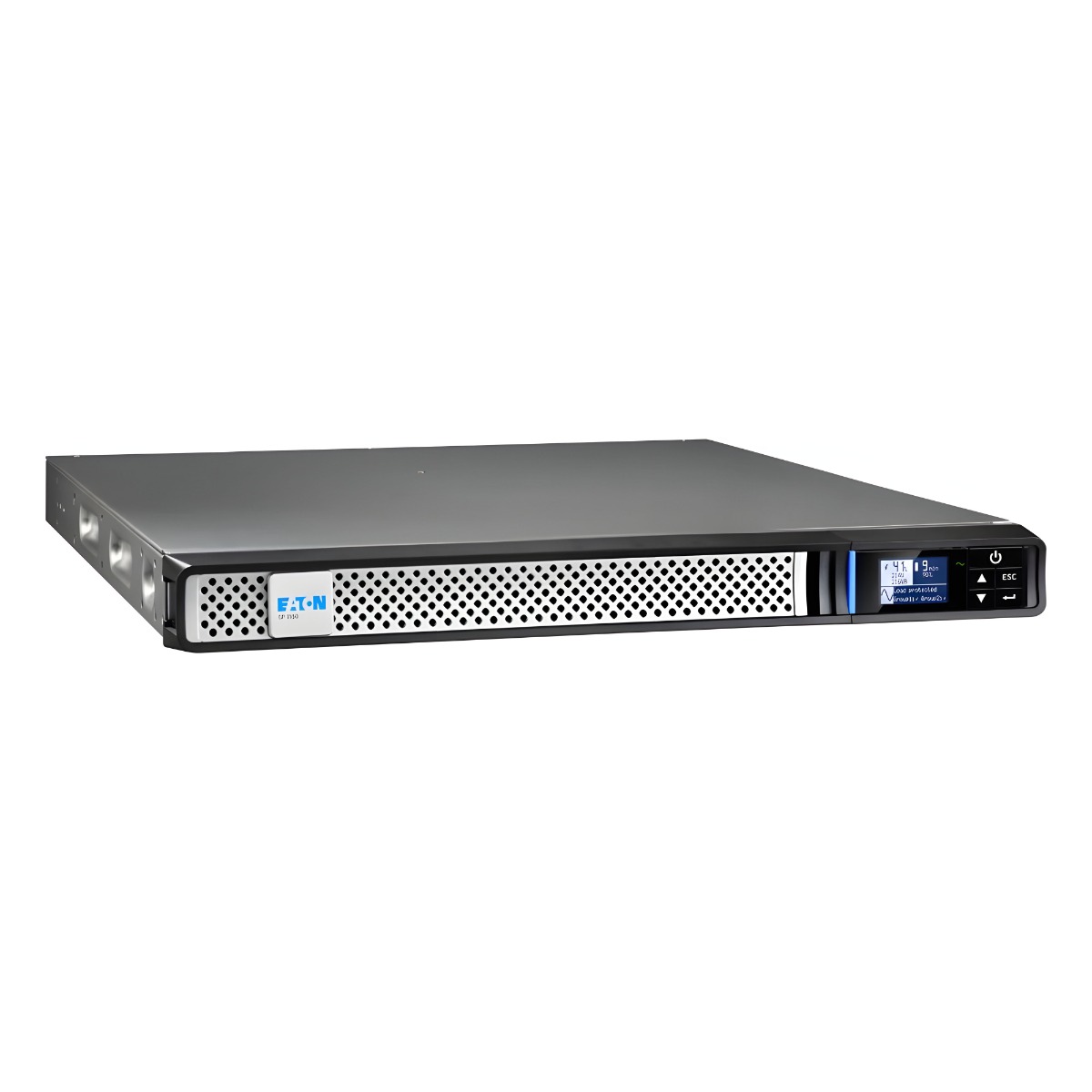

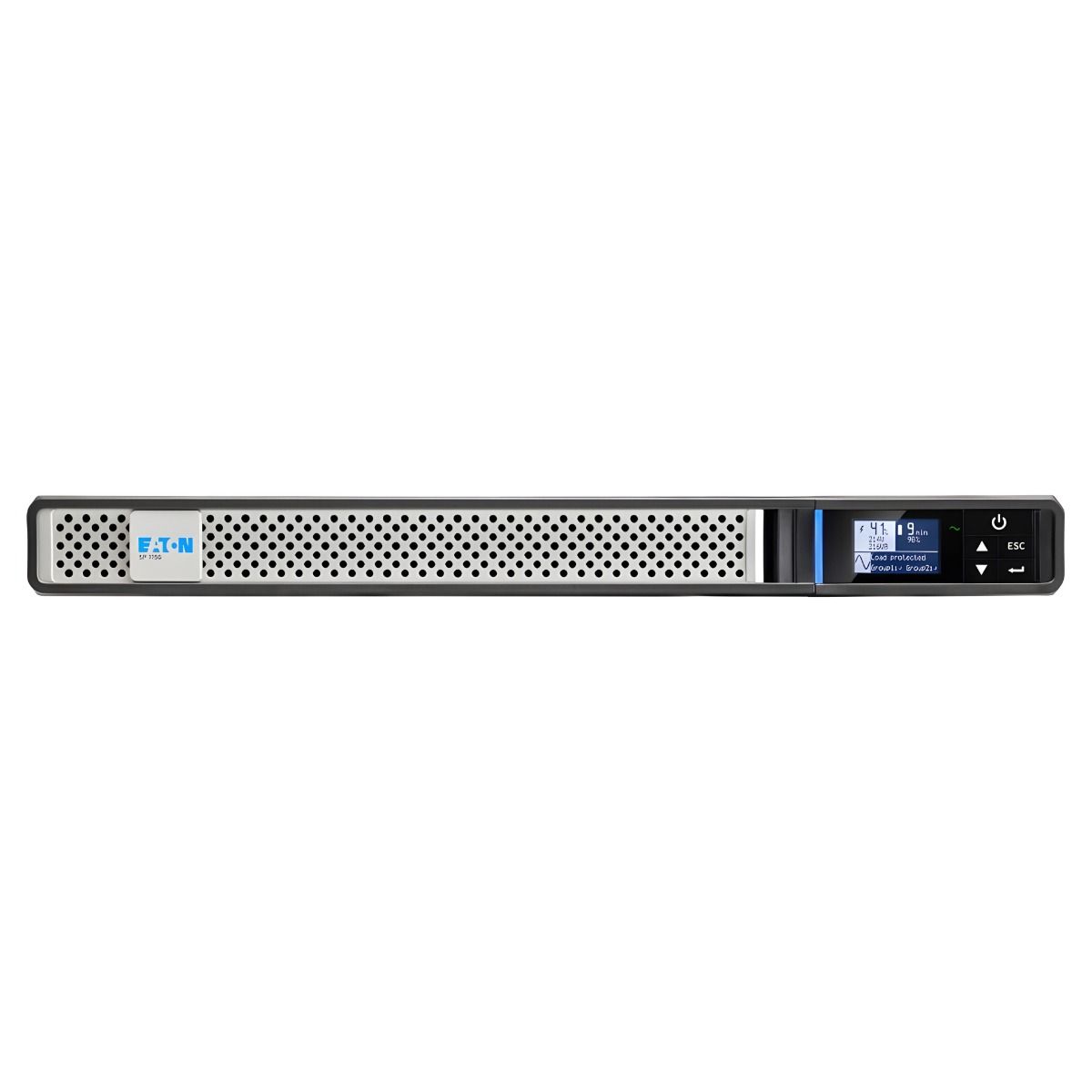

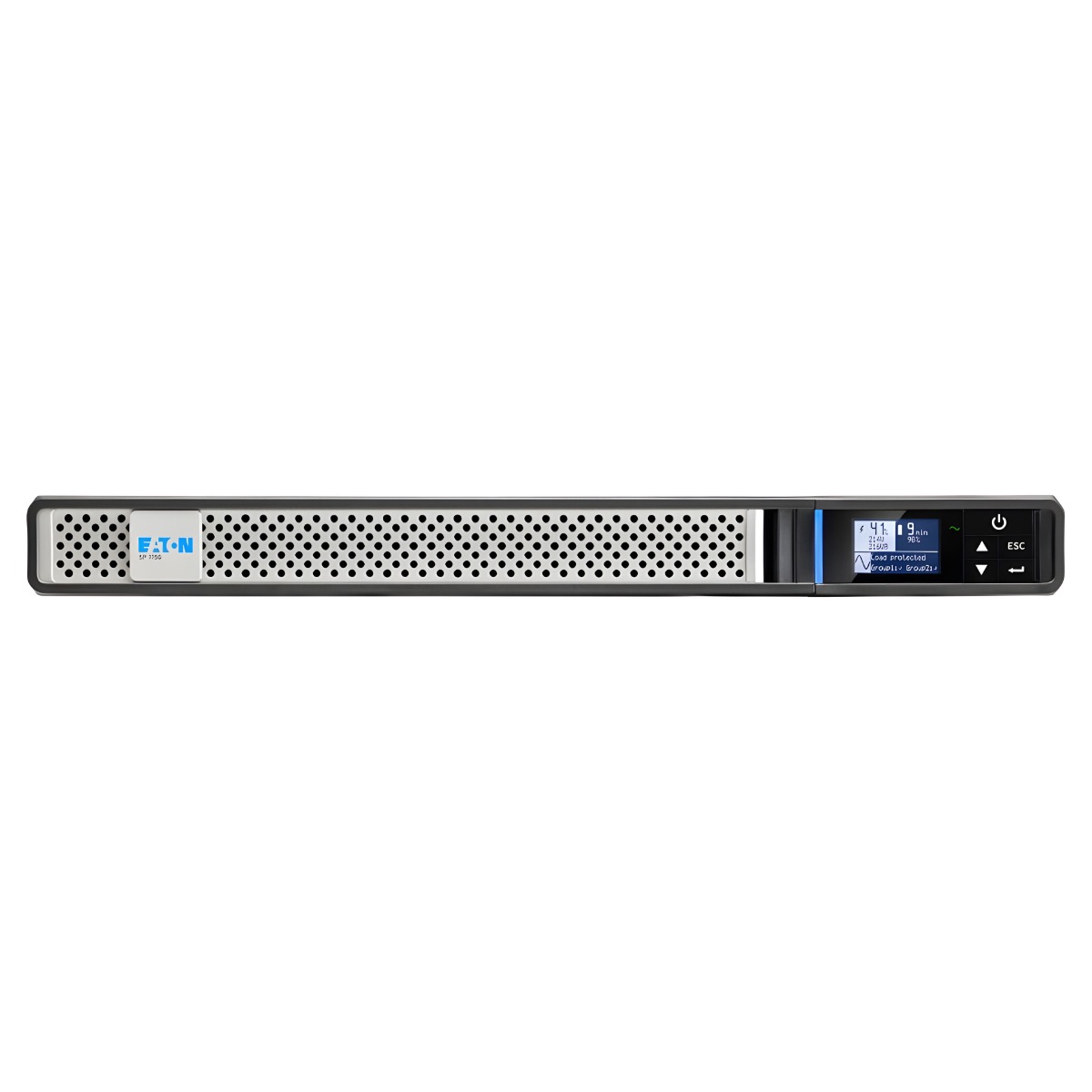

The 5P Gen2 UPS delivers up to 33% more than comparable models available on the market in a compact format, making it ideal for protecting a wide range of applications.
Get ready for a revolution in battery management
Our new Eaton ABM+ technology provides accurate battery life prediction and timely replacement alerts, powered by machine learning.
Ensure continuous service and data integrity
Our IPM2 a DITPM software makes it easy to remotely monitor and manage IT infrastructure, even in hard-to-reach locations, while our Brightlayer Software Suite provides seamless integration with virtualization environments.
Specifications
General specifications Product Name: Eaton 5P Gen2 UPS Product Length/Depth: 509 mm Product Height: 43.2 mm Product Width: 438 mm Product Weight: 14.463 kg Compliances: LVD Directive (CB), EMC Directive, RoHS Directive, , WEEE Directive, Packaging Directive, Batteries Directive Certifications: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA-C22.2, CE, UKCA, Cm, Ukr, KCC, cTUVus, BIS
Battery Battery type: Lead-acid maintenance-free (replaceable) Battery replacement: User replaceable Battery quantity: 4 Battery management: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection Battery rating: 6 V / 9 Ah Extended battery capability: No
Electrical input Input connection: C14 Input nominal voltage: 230V default (200/208/220/230/240V) Nominal frequency: 50-60 Hz Input voltage range: 160-294 V (adjustable to 150 V-294 V) Input frequency range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

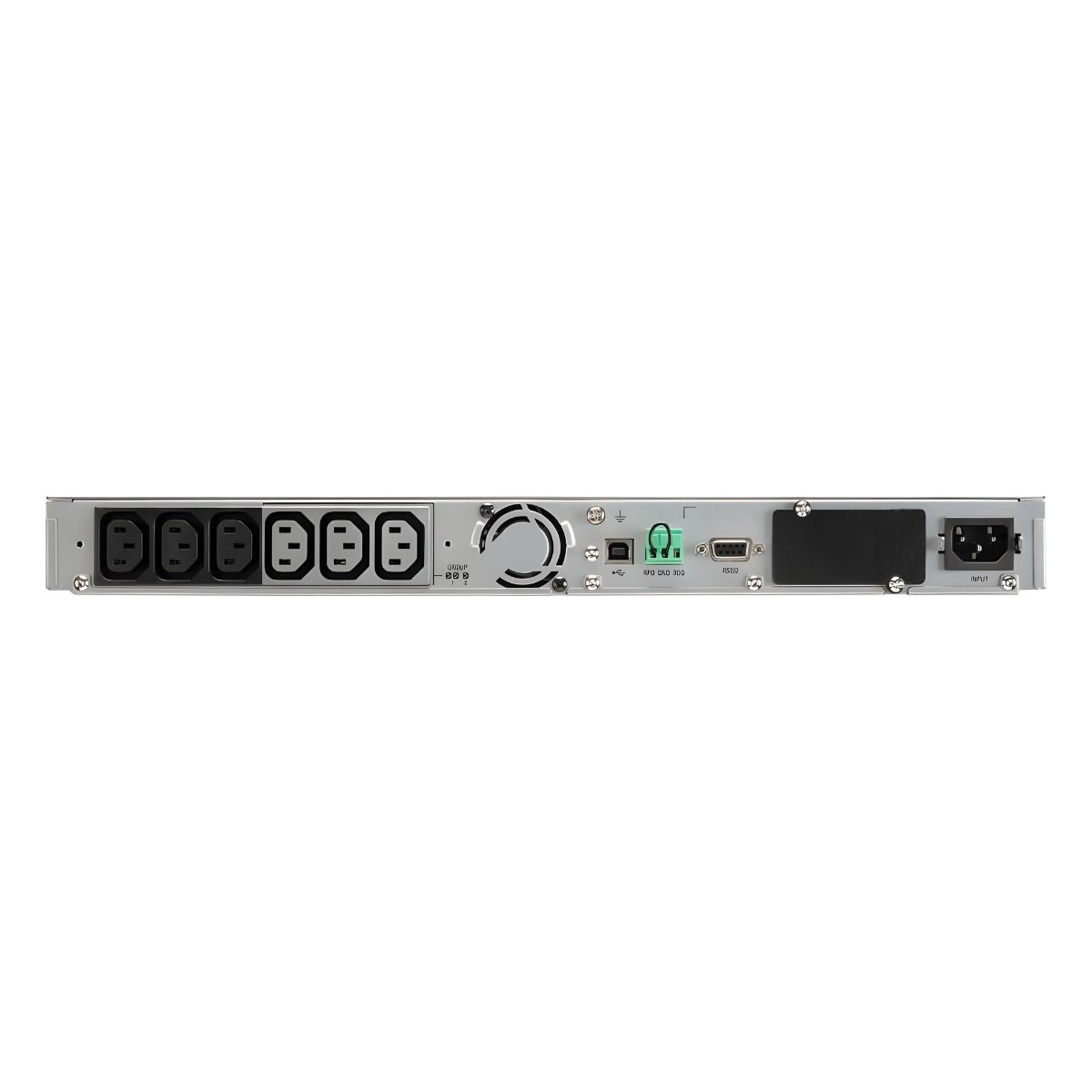

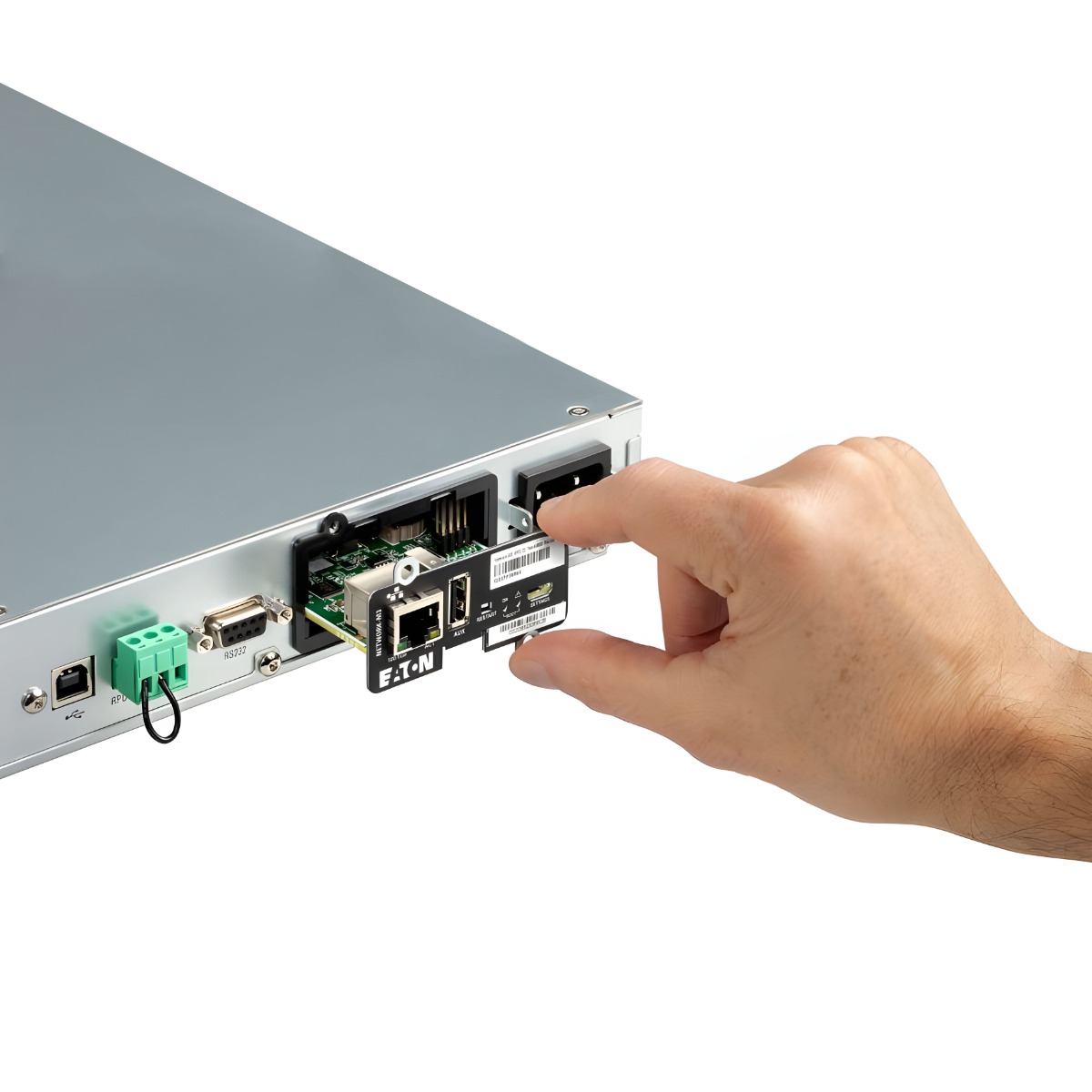

Communications Communication: USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off, Dry contacts (2 outputs, optocoupler, RJ) Ethernet interface: No Potential free switch contact: Yes Expansion slots: One slot for optional communication card Software compatibility: Eaton Brightlayer Software suite Type of interface: Other
Environmental Altitude: 3000 m Noise level: <35 dB at 1 meter Temperature range: 0° to 40°C (32° to 104°F) BTU Rating: Online: 63, Battery: 465 BTU/hr Relative humidity: 0-90% non-condensing
Additional specifications Form factor: Rack Construction type: 482.6 mm (19 inch) device Enclosure: Black/silver Phase (output): 1 Auto shutdown function: Yes Rack size: 1U Rack mounting kit: Yes Efficiency: 98,2 Phase (input): 1
