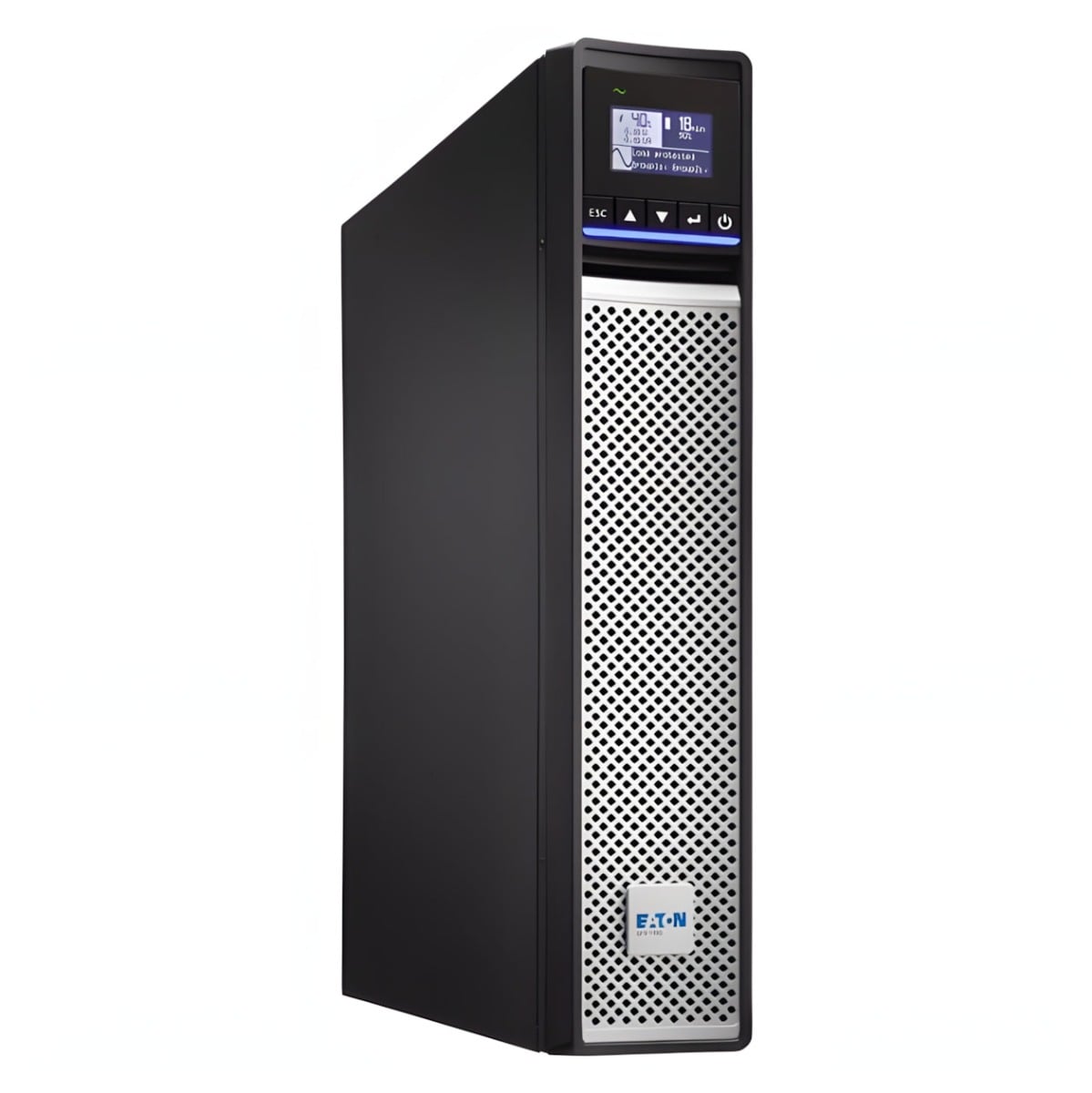

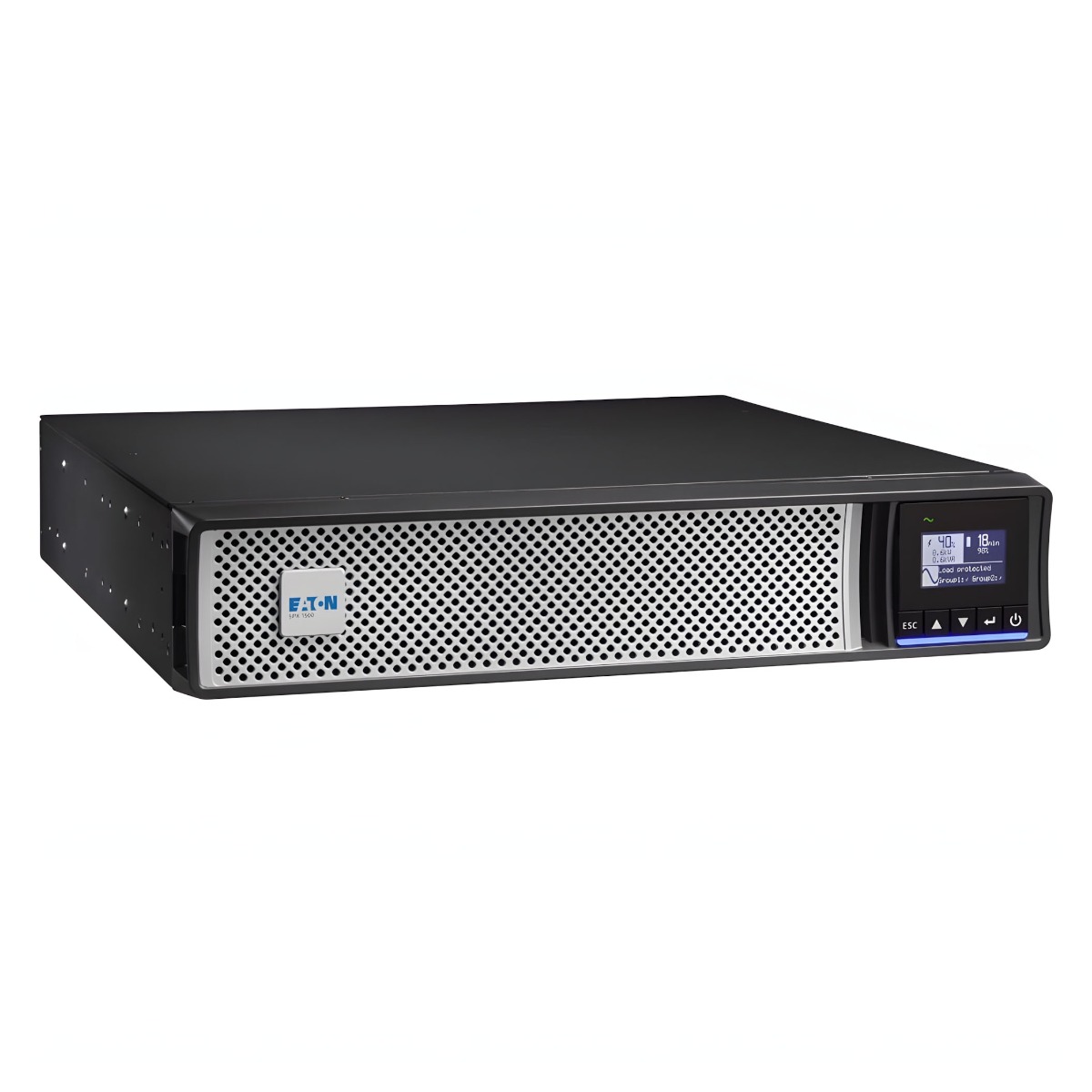

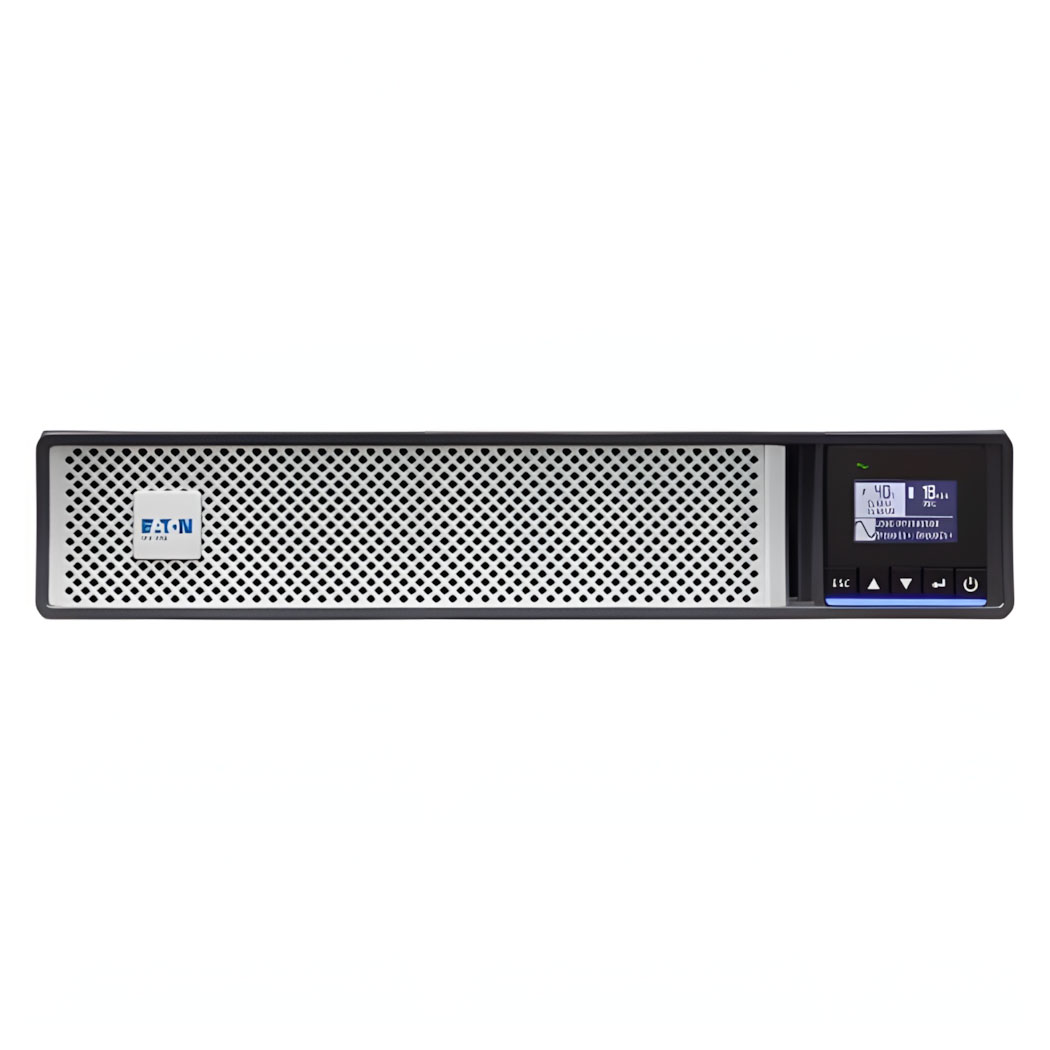

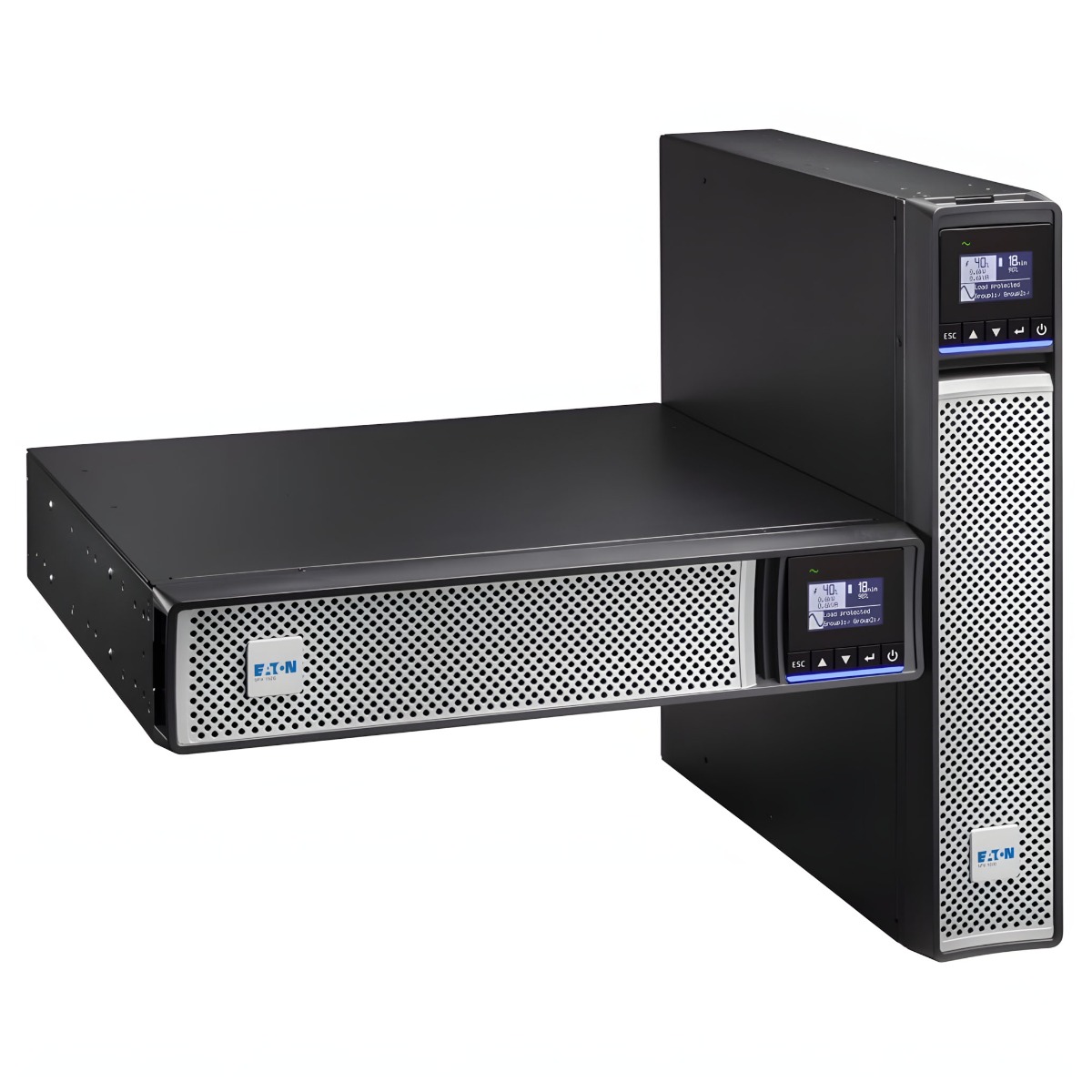

Eaton 5PX Gen2 3000i RT2U Netpack UPS Desktop / Rackmount w/ Network Card

SKU
173181-A
MPN
5PX3000IRTNG2BS
EAN
3553340620935
£2,699.00 Save £800.00 Now £1,899.00
  • 3000W Output UPS
  • 3kVA Power Capacity
  • 10x AC Power Outlets
  • C13 & C19 Couplers
  • Sealed Lead Acid Battery
  • Desktop or 2U Rackmount
Add to Wish List
Condition
Brand New

We take great pride in the products we supply and are glad to provide detailed information on each products condition. All our items range from brand new to refurbished - you can find more details in the condition tab below.

Warranty
12 Months

Cover against manufacturing faults or defects found during the warranty period. The warranty provided does not cover accidental damage or misuse. Further details can be found in the warranty tab below.

Delivery
Next Working Day Delivery on Orders Before 2pm

Enjoy lightning fast same day dispatch with next working day delivery* on all orders placed before 2pm. Plus, it's FREE for the UK mainland and you'll get a text from our courier with an hour long timeslot on the day of delivery. Peace of mind with TEKshop.

Very small, cheaper items may occasionally be sent with Royal Mail Untracked First Class. Examples include VPN timecards or Serial Number Keys.

Returns
30 Day Money Back Returns

Changed your mind? No problem, our 30-day return program allows returns up to 30 days from the date of purchase. Just make sure it's in as new condition with the original packaging.

Introducing the latest addition to Eaton’s 5 series UPS line, the Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. With select 2 and 3 kVA models, the 5PX G2 UPS offers a reduced depth that conserves space for high-density wall mount rack installations.

Connected equipment may include: Servers (including VoIP), storage, networking equipment, switches (including PoE) and other IT equipment.

5PX G2 UPS Features Include

Deployment simplified: The 5PX G2 UPS offers mass UPS firmware upgrades without dropping the load and provides an easy start-up configuration wizard simplifying your UPS setup process.

Runtime: Increased standard runtime by at least 25% on 1.5 and 2 kVA models compared to the original 5PX UPS.

Stay connected, securely: Reduce the risk of intrusion with the optional Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards.

Enhanced surge protection: The 5PX G2 provides enhanced surge protection keeping your branch offices and IT closets equipment safe.

Specifications

Power
Output power factor: 1
Output power: 3000W
Input operation voltage (min): 150 V
Input operation voltage (max): 294 V
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Power factor: 1
Output power capacity: 3 kVA

Performance
Waveform: Sine
Automatic Voltage Regulation (AVR): Yes
Number of output phases: 1
Number of input phases: 1
Power protection features: Overdischarge
Noise level: 40dB

Features
Waveform: Sine
Automatic Voltage Regulation (AVR): Yes
Number of output phases: 1
Number of input phases: 1
Output power factor: 1
Output power: 3000W
Input operation voltage (min): 150 V
Input operation voltage (max): 294 V
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Power protection features: Overdischarge
Input frequency: 47/70 Hz

Ports & interfaces
USB port: Yes
Serial interface: Yes
Serial interface type: RS-232
AC outlets quantity: 10 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
USB 2.0 ports quantity: 1
Serial ports quantity: 1
USB port type: USB Type-B

Battery
Number of batteries supported: 6
Battery voltage: 12 V
Battery capacity: 9 Ah
Battery technology: Sealed Lead Acid (VRLA)
Automatic battery test: Yes

Design
Form factor: Rackmount/Tower
Product colour: Black, Silver
Display: LCD
Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC

Operational conditions
Operating altitude: 0 – 3000m

Technical details
Sustainability compliance: Yes
Sustainability certificates: CE, ENERGY STAR, REACH, RoHS

Weight & dimensions
Weight: 32.7 kg
Width: 588 mm
Height: 240 mm
Depth: 770 mm
