Video Standards And Protocols
H.264 AVC, H.264 High Profile, H.265
Video Input
1 x HDMI
Video Out
1 x HDMI

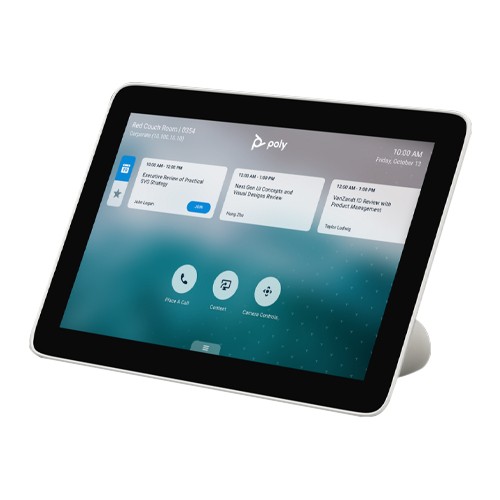

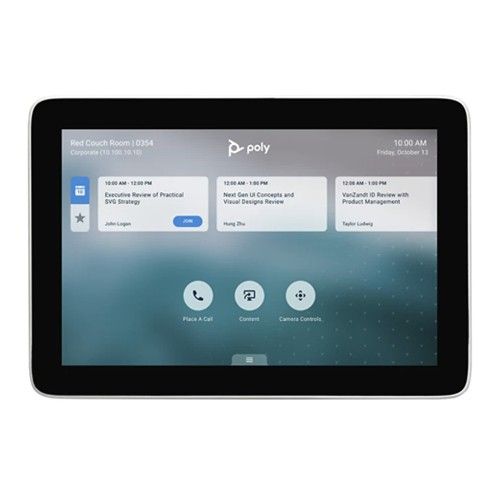

Touch display compatible
People Video Resolution
4K, 30 fps (TX and RX) from 2048 Kbps
1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps
Content Video Resolution
Input
UHD (3840 x 2160)
HD (1920 x 1080p)
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x 720p)
XGA (1024 x 768)
SVGA (800 x 600
Output
UHD (3840 x 2160)
WUXGA (1920 x 1200)
HD (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720)
XGA (1024 x 768)
Content frame rate
5–60 fps (up to 4K resolution at 15 fps in call)
Content Sharing
Poly Content App support
Apple Airplay
Miracast
HDMI input
Whiteboarding

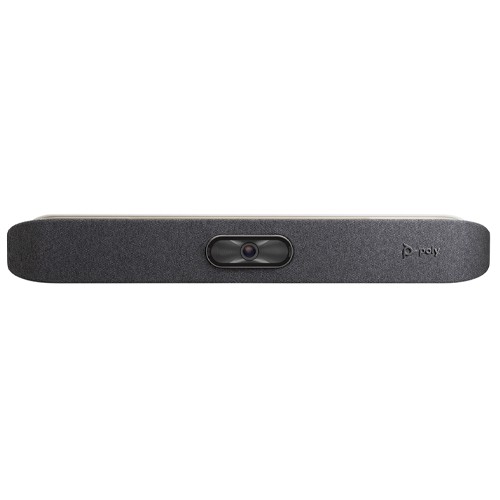

Camera
5 x digital zoom
120° FOV
UHD 2160p (4K) capture resolution
Automatic people framing
Automatic speaker tracking
Audio Input
Four MEMS microphones
Microphone pickup range 15 ft
Audio Output
Single Speaker
Other Interfaces
1 x USB-A (3.0)
1 x USB-C
Bluetooth 5.0
WiFi 802.11a/b/g/n/ac (MIMO)
Multi-channel Concurrency
Audio Standards And Protocols
22 kHz bandwidth with Polycom Siren 22 technology
20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A
Network
IPv4
IPv6
1x 10/100/1G Ethernet
Auto-MDIX
H.323 and/or SIP up to 6 Mbps in Poly App video mode
Polycom Lost Packet Recovery (LPR) technology
Dynamic bandwidth allocation
Reconfigurable MTU size
Web proxy support—basic, digest, and NTLM
Simple Certificate Enrolment Protocol (SCEP)
Security
Media Encryption (H.323, SIP): AES-128,
AES-256
H.235.6 support
Authenticated access to admin menus, web interface, and APIs
Local account password policy configuration
Security profiles
Local account and login port lockout
Secure defaults
Remote logging with support for TLS
Active directory external authentication
Interoperability
Zoom Certified
Microsoft Teams Certified
All cloud service providers through Poly Video App mode
USB Device Mode
Support for native 3rd party applications
includes Zoom, Microsoft Teams, 8x8, GoToRoom, RingCentral and StarLeaf
Electrical
Auto sensing power supply
Typical operating voltage/power
37 VA @ 120 V @ 60 Hz
37 VA @ 230 V @ 50/60 Hz
Typical BTU/h: 65
Environmental Specification
Operating temperature: 0 to 40 °C
Operating humidity (non-condensing): 15 to 80%
Non-operating temperature: -40 to 70 °C
Non-operating humidity (non-condensing): 5 to 95%
Maximum altitude: 16,000 ft
Physical Characteristics
Dimensions
17.39 W x 2.46 H x 2.42 D (inches)
441.8 W x 62.5 H x 61.6 D (mm)
Weight
1.6 lbs/0.73 kg
