Technology
Printing Method: PrecisionCore™ Micro TFP printhead
Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size: 3.8 pl, With Variable-Sized Droplet Technology
Ink Technology: DURABrite™ Ultra, Replaceable Ink Pack System (RIPS)
Category: Office Workgroup
All-in-One Functions: Print
Print
Number of colours: 4 colour
First Page Out: Monochrome4.8 Seconds, Colour5.3 Seconds
Printing Speed ISO/IEC 24734: 25 pages/min Monochrome, 25 pages/min Colour
Duplex Printing Speed ISO/IEC 24734: 16 A4 Pages/min Monochrome, 16 A4 Pages/min Colour
Printing Speed: 34 pages/min Monochrome (plain paper 75 g/m²), 34 pages/min Colour (plain paper 75 g/m²)
Printing Resolution: 4,800 x 1,200 DPI
Printing Volume: 70,000 pages per month
Recommended Duty Cycle: 500 - 5,000 pages per month
Colours: Black, Cyan, Yellow, Magenta
Print from: PC, MAC, Network, Mobile Device, USB, PC (Wired), PC (Wireless), Mobile Device (WiFi Direct)
Connectivity
Network Printing Protocols: LPR, IPP, LDP, Port 9100, WSD, TCP/IPv4, TCP/IPv6, IPSec, IPPS, SMB 2.0, SMB 3.0
Network Management Protocols
SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping, TCP/IPv4, TCP/IPv6, IPSec, IEEE 802.1X, HTTPS, SNMP 2.0c, SNMP 3.0
Network Protocol
HTTPS, IPv4, IPv6, SNMP
Interfaces
Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct
WLAN Security
WEP 64 Bit, WEP 128 Bit, WPA2 Enterprise, WPA2 PSK (AES), WPA3-SAE(AES)
Network Protocol
TCP/IPv4, TCP/IPv6, HTTP, HTTPS, IPv4, IPv6, IPSEC, SSL/TLS
Paper / Media Handling
Paper Formats: A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B5, B6, C4 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter, Legal, 9 x 13 cm, 10 x 15 cm, 13 x 18 cm, 16:9, HLT, EXE, User defined
Automatic Document Feed: Optional
Compatible Paper Weight: 64 - 300g/m²
Duplex: Yes
Standard Paper input: 250 Sheets Standard, 80 Sheets MP tray
Output Tray Capacity: 150 Sheets
Paper Tray Capacity: 330 Sheets Standard, 1,830 Sheets Maximum
Standard paper tray(s): 80-Sheet Multi-Purpose Tray, 500-Sheet paper tray
Optional paper tray(s): 3 x 500 sheet paper tray
Maximum paper input: 1,830
Number of paper trays: 2
Paper Feed
Paper Input Name: RASF
Paper Formats: A4, A5, A6, B5, B6, C4 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter, 9 x 13 cm, 10 x 15 cm, 16:9, Legal, Executive
Custom sizes: Min64x 127 mm to Max 215.9x 6,000 mm
Compatible paper weight: 64 g/m² - 300 g/m²
Paper Capacity 1: 80 Sheets of Plain Paper, 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper
Paper Feed
Paper Input Name: C1
Paper Formats: A4, A5, A6, B5, B6, C4 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter, HLT, Executive
Custom sizes: Min89x 127 mm to Max 215.9x 355.6 mm
Compatible paper weight: 64 g/m² - 160 g/m²
Paper Capacity 1: 250 Sheets of Plain Paper, 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper
Paper Feed
Paper Input Name: C2
Paper Formats: A4, A5, A6, B5, B6, Letter, HLT, Legal, Executive
Custom sizes: Min100x 148 mm to Max 215.9x 355.6 mm
Compatible paper weight: 64 g/m² - 160 g/m²
Paper Capacity 1: 500 Sheets of Plain Paper, 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead
General
Energy Use: 27 Watt (standalone copying, ISO/IEC 24712 pattern), 1.1 Watt (sleep mode), 7 Watt (Ready), 0.2 Watt (Power off), TEC 0.16 kWh/week
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz

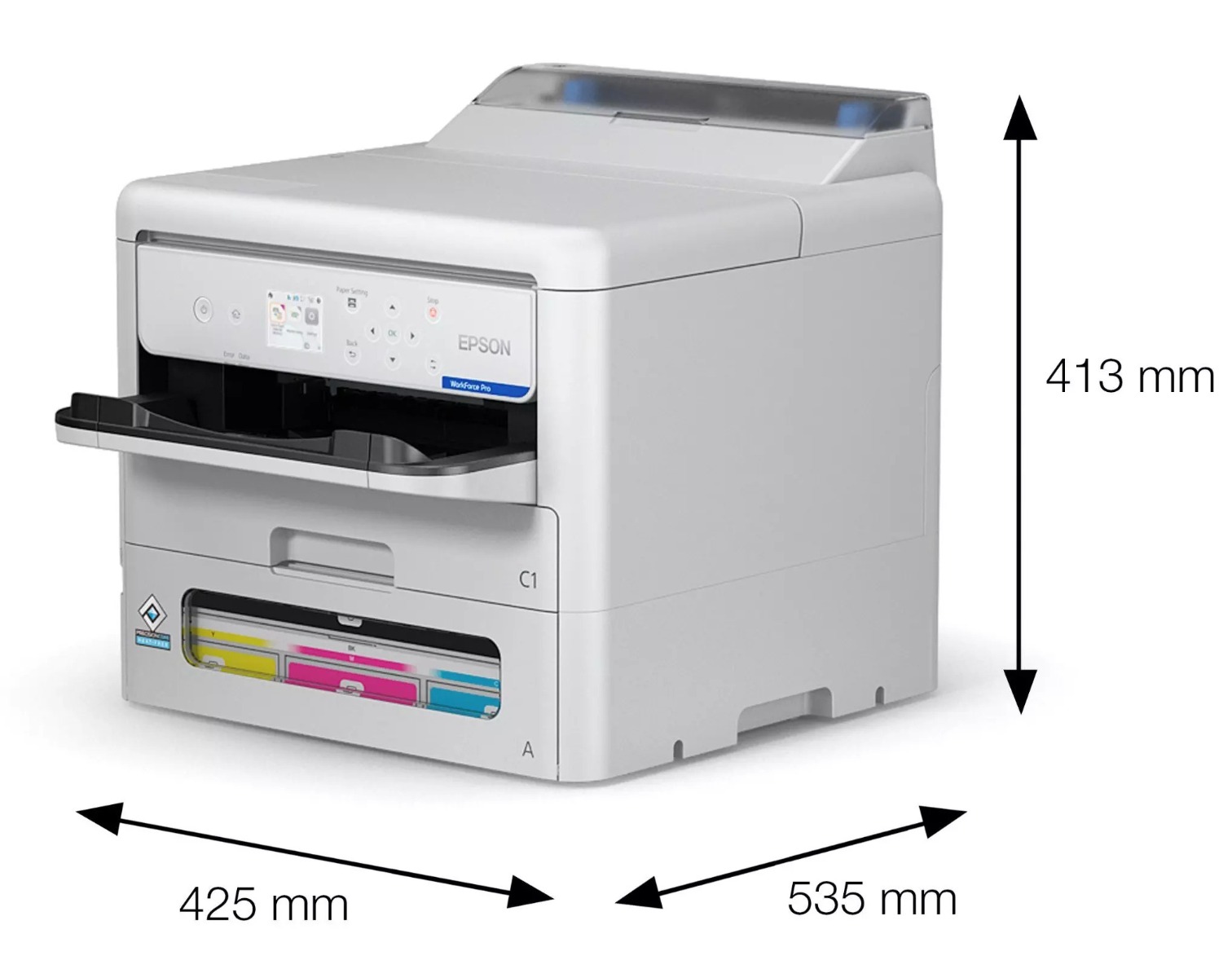

Product dimensions: 425? x 535 x 413 mm (Width x Depth x Height)
Product weight: 17.6 kg
Compatible Operating Systems: Citrix XenApp 7.6 and above, Citrix XenDesktop Version 7.6, Linux, Mac OS 10.10.x, Mac OS 10.14. x, Mac OS 10.15. x, Mac OS 11. x, Mac OS 12. x, Mac OS X 10.11.x, Mac OS X 10.11.x or later, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.9.5 or later, SAP, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 11 or later, Windows 7 (32/64 bit), Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2003 R2 x64, Windows Server 2003 SP2, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows Vista (32/64 bit), Windows XP Professional x64 Edition SP2 or later, Windows XP SP3 or later (32-bit)
Sound Power: Operation:6.7 B (A)
Noise: Operation:52 dB (A)
Mobile and Cloud printing services: Epson Connect (iPrint, Email Print, Remote Print Driver), Apple AirPrint, Mopria, Epson Smart Panel App
Power supply: 220V, 240V
Additional Features
Memory: 2,048 MB
Features: Direct Print, Direct print from USB, Nozzle Verification Technology
Panel: Type: Color, Diagonal:6.1 cm
Media Handling: Automatic duplex (A4, plain paper), Portrait & Landscape printing, Thick Media Support
Security Functions: Limit access function with Epson Web Config, Secure confidential printing with PIN code release, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode
