Sensor
SENSOR TYPE1.0-type (13.2mm x 8.8mm) Exmor RS CMOS sensor, aspect ratio 3:2
NUMBER OF PIXELS (EFFECTIVE)Approx. 20.1 Megapixels
Lens
LENS TYPEZEISS Vario-Sonnar T* Lens, 15 elements in 12 groups (8 aspheric elements including AA lens)
F-NUMBER (MAXIMUM APERTURE)F2.8(W)-4.5(T)
ND FILTER-
FOCAL LENGTH (F=)f=9.0-72mm
ANGLE OF VIEW (35MM FORMAT EQUIVALENT)84deg.-12deg.30min.(24-200mm1)2
FOCUS RANGE (FROM THE FRONT OF THE LENS)AF (W: Approx. 8cm (0.27 ft.) to Infinity, T: Approx. 100cm (3.29 ft.) to Infinity)
OPTICAL ZOOM 8.0x
CLEAR IMAGE ZOOM (STILL IMAGE)20M Approx. 16x / 10M Approx. 22x / 5.0M Approx. 32x / VGA Approx. 121x3
CLEAR IMAGE ZOOM (MOVIE)4K: Approx. 12x / HD: Approx. 16x3
DIGITAL ZOOM (STILL IMAGE)20M Approx. 32x / 10M Approx. 44x / 5.0M Approx. 64x / VGA Approx. 121x3
DIGITAL ZOOM (MOVIE)Approx. 32x3
Screen

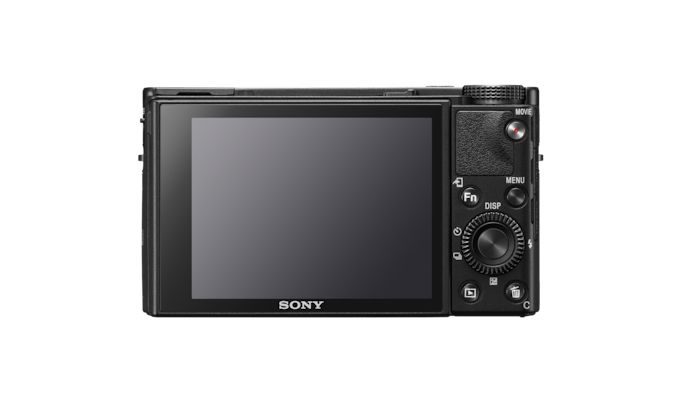

SCREEN TYPE 7.5cm(3.0type)(4:3) / 921,600 dots / Xtra Fine / TFT LCD
ADJUSTABLE ANGLE Up by approx. 180 degrees, down by approx. 90 degrees
DISPLAY SELECTOR (FINDER/LCD)Auto/EVF(Manual)/Monitor(Manual)
MF ASSIST MAGNIFICATION5.3x, 10.7x
TOUCH PANEL Yes
Viewfinder
SCREEN TYPE/NUMBER OF DOTS0.39-type electronic viewfinder(OLED), 2,359,296 dots
FIELD COVERAGE 100%
MAGNIFICATION Approx. 0.59x with 50mm lens at infinity, -1m-1(diopter) (35mm equiv.)
EYE POINT Approx. 20mm from the eyepiece, 19.8mm from the eyepiece frame at -1m-1(diopter) (CIPA standard)
DIOPTRE ADJUSTMENT-4.0 to +3.0m-1
BRIGHTNESS CONTROL Auto, Manual(5steps)
Camera
IMAGE PROCESSING ENGINE Yes (BIONZ X)
STEADYSHOT (STILL IMAGE) Optical
STEADYSHOT (MOVIE) Yes (Intelligent Active Mode, Optical type with electronic compensation, Anti Rolling type)
FOCUS TYPE Fast Hybrid AF(phase-detection AF/contrast-detection AF)
FOCUS MODE Single-shot AF, Automatic AF, Continuous AF, DMF, Manual Focus
FOCUS AREA Wide (357 points (phase-detection AF), 425 points(contrast-detection AF)), Zone, Center, Flexible Spot (S/M/L), Expanded Flexible Spot, Tracking (Wide/Zone/Center/Flexible Spot(S/M/L)/Expanded Flexible Spot)
OBJECT TRACKING Yes (Tracking) EYE AF[Still images] Human (Right/Left Eye Select) / Animal; [Movie] Human (Right/Left Eye Select)
LIGHT METERING MODE Multi Pattern, Center Weighted, Spot, Entire Screen Avg, Highlight
EXPOSURE COMPENSATION+/- 3.0EV, 1/3EV step
ISO SENSITIVITY (STILL IMAGE)(RECOMMENDED EXPOSURE INDEX) Auto(ISO100-12800, selectable with upper / lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO64/80), Multi-Frame NR:Auto(ISO100-12800), 100/200/400/800/1600/3200/6400/12800/256004
ISO SENSITIVITY (MOVIE)Auto:(ISO100Level-ISO12800Level, selectable with upper / lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800
WHITE BALANCE MODES Auto, Daylight, Shade, Cloudy, Incandescent, Fluor.: Warm White, Fluor.: Cool White, Fluor.: Day White, Fluor.: Daylight, Flash, Underwater Auto, C.Temp./Filter, Custom
WB MICRO ADJUSTMENT Yes(G7 to M7,57-step)(A7 to B7,29-step)
SHUTTER SPEED iAuto(4" - 1/2000) / Program Auto(30" - 1/2000) / Manual(Bulb, 30" - 1/2000) / Aperture Priority(30" - 1/2000) / Shutter Priority(30" - 1/2000)5
ELECTRONIC SHUTTER[Single Shooting] iAuto (4" - 1/32000) / Program Auto(30" - 1/32000) / Manual(30" - 1/32000) / Aperture Priority(30" - 1/32000) / Shutter Priority(30" - 1/32000);, [Continuous Shooting/Single Burst Shooting] 1/8 - 1/32000
APERTURE iAuto(F2.8/F11(W)) / Program Auto(F2.8/F11(W)) / Manual(F2.8/F11(W)) / Shutter Priority(F2.8/F11(W)) / Aperture Priority(F2.8/F11(W))
IMAGE CONTROL Contrast, Saturation, Sharpness, Creative Style, Color Space(sRGB / Adobe RGB), Quality(RAW / RAW&JPEG (Extra fine, Fine, Standard) / JPEG (Extra fine, Fine, Standard)
NOISE REDUCTION Long exposure NR:On/Off, available of shutter speeds longer than 1/3 sec., high ISO NR:Normal/Low/Off, Multi Frame NR: Auto, ISO100-25600
DYNAMIC RANGE FUNCTIONSOff, Dynamic Range Optimizer (Auto/Level 1-5), Auto High Dynamic Range (Auto Exposure Difference, Exposure difference Level (1.0-6.0EV, 1.0EV step)
SHOOTING MODEAUTO(Intelligent Auto/Superior Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, MR(Memory Recall) [body 3 sets / memory card 4 sets], Movie Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), HFR Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), Panorama, Scene Selection
SCENE SELECTION Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Handheld Twilight, Night Portrait, Anti Motion Blur, Pet Mode, Gourmet, Fireworks, High Sensitivity
CONTINUOUS SHOOTING SPEED (MAXIMUM) (WITH MAX. RECORDING PIXELS)[AUTO/Electronic Shutter] Continuous Shooting Hi: approx. 20 fps, Continuous Shooting Mid: approx. 10 fps, Continuous Shooting Low: approx. 5.0 fps, Single Burst Shooting Hi: approx. 90fps6, Single Burst Shooting Mid: approx. 60fps6, Single Burst Shooting Low: approx. 30fps6 [Mechanical Shutter] Continuous Shooting Hi: -, Continuous Shooting Mid: approx. 10 fps, Continuous Shooting Low: approx. 3.0 fps 789
SELF-TIMER10sec. / 5sec. / 2sec. / 3 or 5 consecutive shots with 10sec. 5sec. or 2sec. delay selectable / Bracketing shots with 10sec. 5sec. or 2sec. delay selectable / Single Burst shots with 10sec. 5sec. or 2sec. delay selectable
DRIVE MODES
Single, Continuous shooting, Single Burst Shooting, Self-timer, Self-timer(cont.), Cont.-bracketing10, Single-bracketing10, White balance bracketing10, DRO bracketing
INTERVAL RECYes (1-60 sec. interval, 1-9999 shots, AE lock/AE tracking(High/Mid/Low))11
PANORAMA (SHOOTING)Sweep Panorama
PICTURE EFFECT
[Still Image]:Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono., Soft Focus, HDR Painting, Richtone Monochrome, Miniature, Watercolor, Illustration, [Movie]:Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono.
CREATIVE STYLE Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia, Style Box
PICTURE PROFILE off/PP1-PP10(Black Level, Gamma(Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset)
NUMBER OF RECOGNISED SCENES
[Still Image]:Superior Auto: 44 / iAuto: 33, [Movie]:44
Flash
FLASH MODE Auto / Flash On / Slow Synchro / Rear Sync / Flash Off
FLASH TYPE Built-in, manual pop-upAF
ILLUMINATORAuto / Off
BRACKETING Yes
FLASH RANGEISO Auto: Approx.0.4m to 5.9m (1.31 ft. to 19.35 ft.) (W) / Approx. 1.0m to 3.1m (3.28 ft. to 10.17 ft.) (T), ISO12800: up to Approx. 12.4m (40.68 ft.) (W) / Approx. 7.0m (22.96 ft.) (T)
Recording
COMPATIBLE RECORDING MEDIA[XAVC S(100Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S(60Mbps/50Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [AVCHD/Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro12, Memory Stick Micro(Mark2)12, SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)12
RECORDING FORMAT[Still Image]:JPEG(DCF Ver.2.0,Exif Ver.2.31,MPF Baseline compliant), RAW(Sony ARW 2.3 format), [Movie]:XAVC S, AVCHD format Ver.2.0 compatible
RECORDING FORMAT (MOVIE AUDIO)XAVC S:LPCM 2ch, AVCHD:Dolby Digital(AC-3) 2ch(Dolby Digital Stereo Creator)
COLOUR SPACE (STILL)sRGB, Adobe RGB
DCF/DPOFDCF/DPOF/EXIF/MPF
STILL IMAGE NUMBER OF RECORDED PIXELS (IMAGE SIZE)3:2mode:20M(5,472×3,648) / 10M(3,888×2,592) / 5M(2,736×1,824), 4:3mode:18M(4,864×3,648) / 10M(3,648×2,736) / 5M(2,592×1,944) / VGA, 16:9mode:17M(5,472×3,080) / 7.5M(3,648×2,056) / 4.2M(2,720×1,528), 1:1mode:13M(3,648×3,648) / 6.5M(2,544×2,544) / 3.7M(1,920×1,920) , Sweep Panorama:Wide(12,416×1,856/5,536×2,160), Standard(8,192×1,856/3,872×2,160)
MOVIE RECORDING MODE (NTSC)NTSC/PAL Selector: [NTSC] AVCHD: 24M FX(1,920x1,080/60i) / 17M FH(1,920x1,080/60i), XAVC S 4K: 30p 100M(3,840x2,160/30p) / 30p 60M(3,840x2,160/30p) / 24p 100M(3,840x2,160/24p) / 24p 60M(3,840x2,160/24p), XAVC S HD:60p 50M(1,920x1,080/60p) / 60p 25M(1,920x1,080/60p) / 30p 50M(1,920x1,080/30p) / 30p 16M(1,920x1,080/30p) / 24p 50M(1,920x1,080/24p) / 120p 100M(1,920x1,080/120p) / 120p 60M(1,920x1,080/120p)
MOVIE RECORDING MODE (PAL)NTSC/PAL Selector: [PAL] mode AVCHD: 24M FX(1,920x1,080/50i) / 17M FH(1,920x1,080/50i), XAVC S 4K: 25p 100M(3,840x2,160/25p) / 25p 60M(3,840x2,160/25p), XAVC S HD:50p 50M(1,920x1,080/50p) / 50p 25M(1,920x1,080/50p) / 25p 50M(1,920x1,080/25p) / 25p 16M(1,920x1,080/25p) / 100p 100M(1,920x1,080/100p) / 100p 60M(1,920x1,080/100p)
HFRRecording: NTSC/PAL Selector: [PAL] mode XAVC S HD:50p 50M(1,920x1,080/250fps), 50p 50M(1,920x1,080/500fps), 50p 50M(1,920x1,080/1000fps) / 25p 50M(1,920x1,080/250fps), 25p 50M(1,920x1,080/500fps), 25p 50M(1,920x1,080/1000fps), NTSC/PAL Selector: [NTSC] mode XAVC S HD:60p 50M(1,920x1,080/240fps), 60p 50M(1,920x1,080/480fps), 60p 50M(1,920x1,080/960fps) / 30p 50M(1,920x1,080/240fps), 30p 50M(1,920x1,080/480fps), 30p 50M(1,920x1,080/960fps) / 24p 50M(1,920x1,080/240fps), 24p 50M(1,920x1,080/480fps), 24p 50M(1,920x1,080/960fps) Sensor Readout Number of effective pixels: Quality Priority:240fps/250fps(1,824x1,026),480fps/500fps(1,824x616),960fps/1000fps(1,244x420)/Shoot Time Priority:240fps/250fps(1,824x616),480fps/500fps(1,292x436),960fps/1000fps(912x308)
STILL IMAGE NUMBER OF RECORDED PIXELS (IMAGE SIZE) DURING MOVIE16:9mode:17M(5,472×3,080) / 7.5M(3,648×2,056) / 4.2M(2,720×1,528)
PROXY RECORDINGYes(1280 x 720(Approx.9Mbps))
Interface

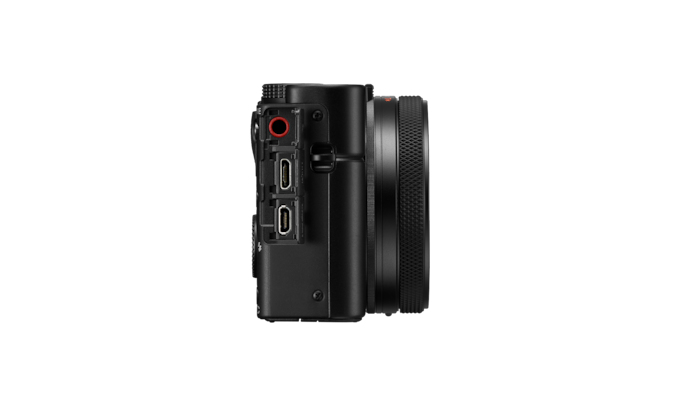

INPUT AND OUTPUT TERMINALSMulti/Micro USB Terminal13, Hi-Speed USB (USB2.0), Micro HDMI, Microphone jack (3.5mm Stereo mini jack)
NFCNFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing
WI-FIYes(IEEE802.11b/g/n(2.4GHz band))
BLUETOOTHYes (Bluetooth Standard Ver. 4.1 (2.4GHz band))
Power
POWER SOURCEDC3.6V(supplied battery) / DC5.0V(supplied AC Adaptor)

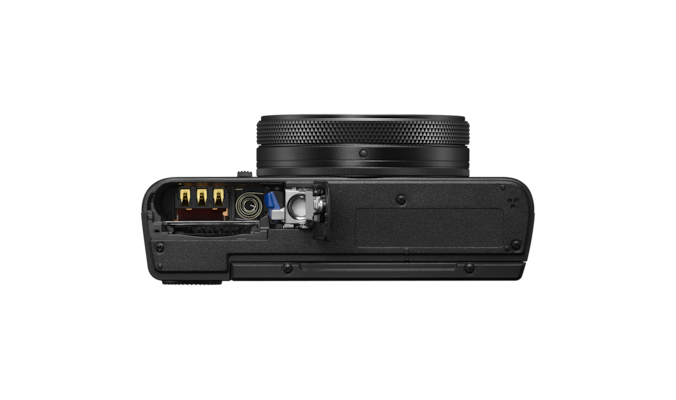

BATTERY SYSTEMRechargeable battery pack (NP-BX1)
POWER CONSUMPTION (CAMERA MODE)Approx. 2.1W with LCD monitor and approx. 2.3W with viewfinder(CIPA standard)
USB CHARGE/USB POWER SUPPLYYes (Shooting, Playback)
BATTERY LIFE(STILL IMAGES)(CIPA) Monitor:Approx. 260 / Approx. 130min., Monitor (When Auto Monitor off is set to 2sec):Approx. 310 / Approx. 155min., ViewFinder:Approx. 240 / Approx. 120min.14
BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA) Monitor:Approx. 40min., ViewFinder:Approx. 40min.
BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA) Monitor:Approx. 70min., ViewFinder:Approx. 70min.
Others
SHOOTING FUNCTIONS Face Detection, Face Registration, Still Image Recording (during movie recording), Smile shutter, Grid Line, Quick Navi, Digital Level Gauge (pitch and roll), WB Bracket, DRO Bracketing, MF Assist, Peaking (Display: Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White), Zebra, Marker Display, Audio Rec Level, Audio Level Display, Step Zoom / Quick Zoom, Self-portrait timer, TC/UB, Copyright Info, ISO Auto Minimum Shutter Speed, PC Remote Controll, Gamma Disp. Assist, [Mov]AF Tracking Sensitivity, [Mov]AF Drive Speed, Set File Name, Touch Shutter/Touch Focus/Touch Tracking, Touch Pad, My Menu, My Dial
PLAYBACK FUNCTIONSBRAVIA Sync(Control for HDMI), 9/25-frame index view, Auto Orientation, Slide Show, Forward/Rewind (Movie), Delete, Protect, Motion Shot Video, Beatuty Effect, Photo Capture, Rating, Automatic Image Rotation
TRILUMINOS COLOR Yes
4K IMAGE OUTPUT Yes
OPERATING TEMPERATURE0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F.
Print
PRINT Exif Print, PRINT Image Matching (PIM3)
Size & Weight
DIMENSIONS (W X H X D) (APPROX.)101.6 x 58.1 x 42.8 mm(4 in. x 2 3/8 in. x 1 11/16 in.)
WEIGHT (CIPA COMPLIANT)Approx. 302g (10.7oz.)(Battery and Memory Card are included) / Approx. 275g (9.8oz.)(Body Only)
Supplied Accesory
WHAT'S IN THE BOX
Rechargeable Battery Pack (NP-BX1), AC Adaptor, Micro USB cable, Wrist Strap, Strap Adapter, Instruction Manual
