The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

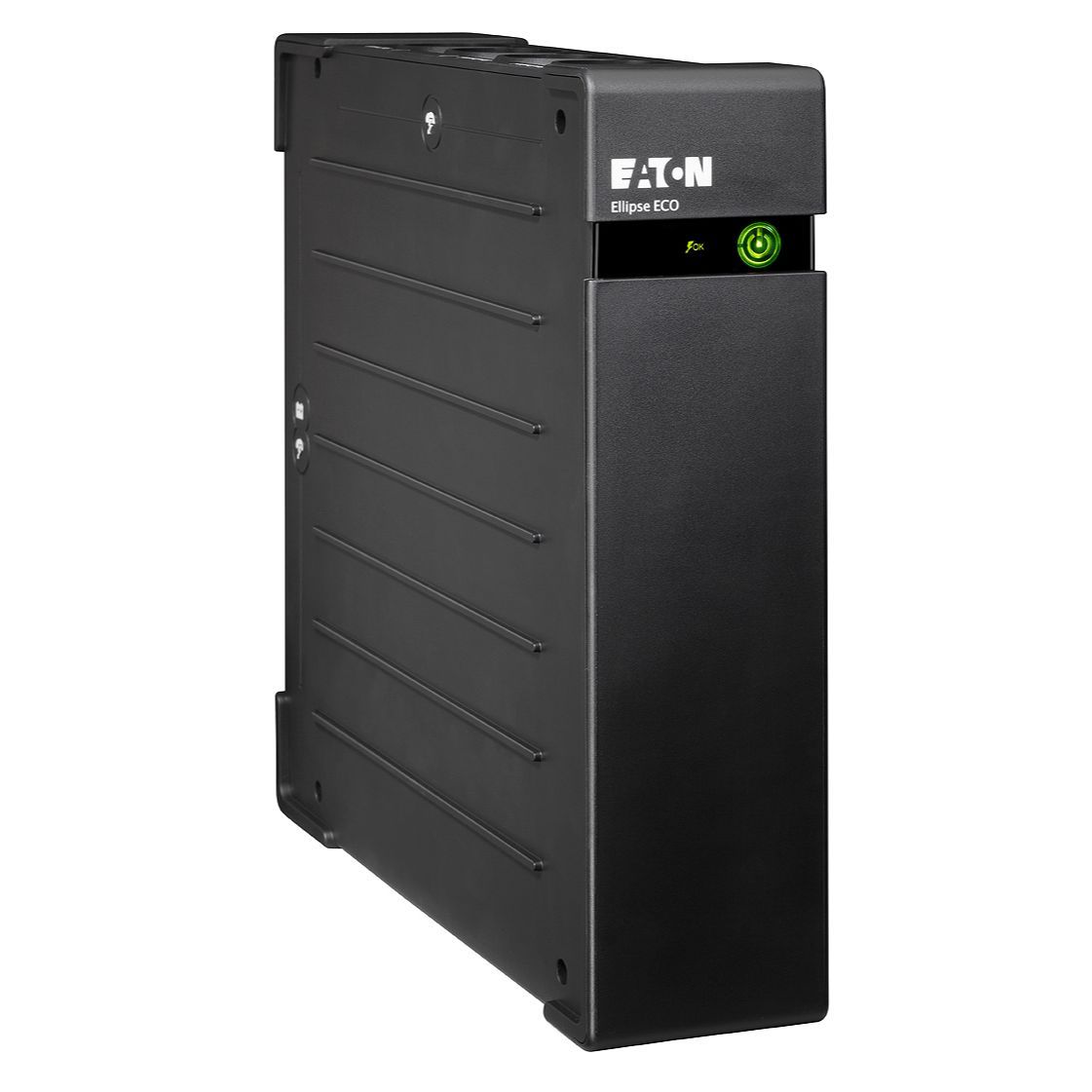

PRODUCT NAME - Eaton Ellipse ECO UPS
CATALOG NUMBER - EL1600USBIEC
EAN - 3553340621635
PRODUCT LENGTH/DEPTH - 81 mm
PRODUCT HEIGHT - 305 mm
PRODUCT WIDTH - 312 mm
PRODUCT WEIGHT - 7.8 kg
COMPLIANCES - CE Marked
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
BATTERY
BATTERY TYPE - Sealed, lead-acid
BATTERY REPLACEMENT - User replaceable
BATTERY QUANTITY - 2
BATTERY MANAGEMENT - Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
BATTERY RATING - 12 V / 9 Ah
EXTENDED BATTERY CAPABILITY - No
ELECTRICAL OUTPUT

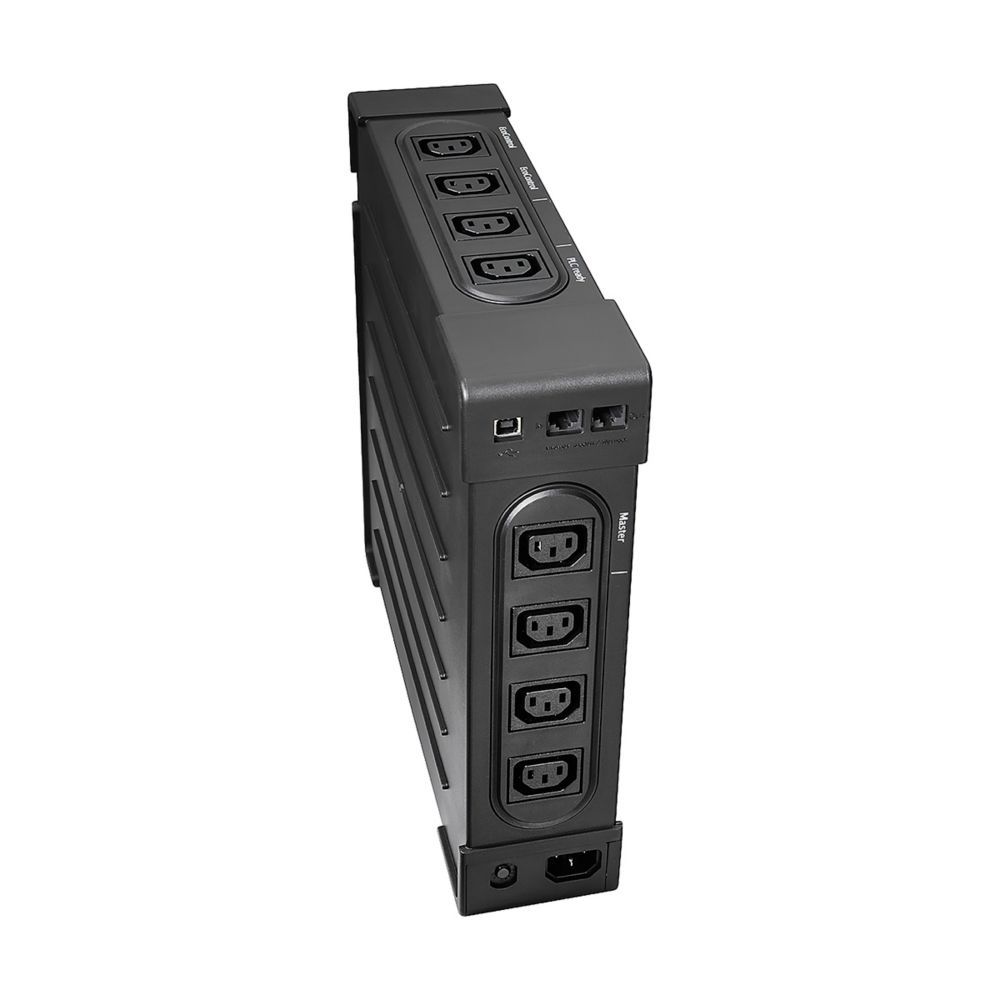

RECEPTACLE - (4) C13, (4) C13 surge only
VOLTAGE - 230V
WATTAGE -1000 W
OUTPUT P OWER FACTOR -0.6
OUTPUT VOLTAGE RANGE - 184-264 V (adjustable to 161-284 V)
OUTPUT NOMINAL VOLTAGE - 230V default (220/230/240V)
FEED TYPE - 1
TOPOLOGY - Offline
VA RATING - 1600 VA
ELECTRICAL INPUT
INPUT CONNECTION - C14
INPUT NOMINAL VOLTAGE - 230V default (220/230/240V)
NOMINAL FREQUENCY - 50/60 Hz
INPUT VOLTAGE RANGE - 184-264 V (adjustable to 161-284 V)
INPUT FREQUENCY RANGE - 46-70 Hz
COMMUNICATIONS
INCLUDES NETWORK CARD - No
COMMUNICATION - USB port (HID compliant)
ETHERNET INTERFACE - No
USER INTERFACE - LEDs
POTENTIAL FREE SWITCH CONTACT - No
EXPANSION SLOTS - No
SOFTWARE COMPATIBILITY - Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
TYPE OF INTERFACE - USB
ENVIRONMENTAL
ALTITUDE - 2000 m
NOISE LEVEL - <25 dB at 1 meter
TEMPERATURE RANGE - 0° to 35°C (32° to 95°F)
RELATIVE HUMIDITY - 0-85% non-condensing
ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE - Free standing model
PACKAGE CONTENTS
(2) IEC-IEC cables
USB cable
User manual
Safety instructions
PHASE (OUTPUT) - 1
AUTO SHUTDOWN FUNCTION - Yes
COLOR - Black
EFFICIENCY - 98
RACK MOUNTING KIT - No
PHASE (INPUT) - 1
SURGE PROTECTION - Yes
