Prepare yourself for an unforgettable gaming experience with the EVGA GeForce RTX 3070 XC3 Ultra Gaming GPU. The EVGA GeForce RTX 3070 XC3 Ultra is powered by the NVIDIA Ampere architecture and built with enhanced RT Cores and Tensor Cores, streaming multiprocessors, and high-speed GDDR6 memory, it gives you the power you need to rip through the most demanding games at 1440p resolution. Combined with the next generation of design, cooling, and overclocking with EVGA Precision X1, the EVGA GeForce RTX 3070 Series creates a definition for ultimate performance. The 3070 graphics cards are colossally powerful in every way.
Copper base
ICX3 Cooling incorporates a copper base that is 25% larger than previous generations to cover both the GPU and VRAM to improve thermal transfer to the heatsink.
180° heatpipe design
A 180° heatpipe design with optimally positioned heatpipes increases fin contact area by up to 65% massively increasing thermal efficiency across the 30 Series GPUs.
Intuitive airflow pockets
Handy airflow holes allow air to move freely across the heatsink allowing for better optimised heat dissipation and removal.
Ice cold cooling
EVGA's ICX cooling has already revolutionised graphics card cooling from the inside out, ICX gave users the control to monitor temperatures and fan speeds via EVGA Precision X1 Software. EVGA have taken something great and made it even better as ICX3 provides improved thermal performance and significantly reduces acoustic noise, the cooling assembly has been upgraded at every facet in order to maximise the thermal contact surface on GPU components.
Second generation fans
EVGA's iCX3 fans feature a 2nd Gen optimised HDB active motor for silent 0dB mode, asynchronous fan mode, and a special upraised "E" pattern that further reduces noise
Remove those distractions
EVGA's iCX3 fans turn off below 55°C, generating 0dB of noise allowing you to carry out low demanding tasks with minimal distractions.
Exceptional triple fan cooling
The ICX3 cooling system incorporates 3x 2nd Gen HDB fans to optimise airflow, increase cooling performance and reduce overall fan noise over all, combine this with the information given via thermal sensors and micro-processors provided via EVGA X1 Precision software and use the tools afforded by iCX3 Technology to monitor every sensor on the graphics card, asynchronously control the cooling fans, adjust the OSD to show all temperature sensors, and overclock your card for gaming dominance.
Performance
NVIDIA RTX 3070
5888 CUDA Cores
1770 MHz Boost Clock
325.7GT/s Texture Fill Rate
Memory
8192 MB, 256 bit GDDR6
14000 MHz (effective)
448 GB/s Memory Bandwidth
Cooling
iCX3 Cooling
LED Logo: ARGB
Interface
PCIe 4.0 16x

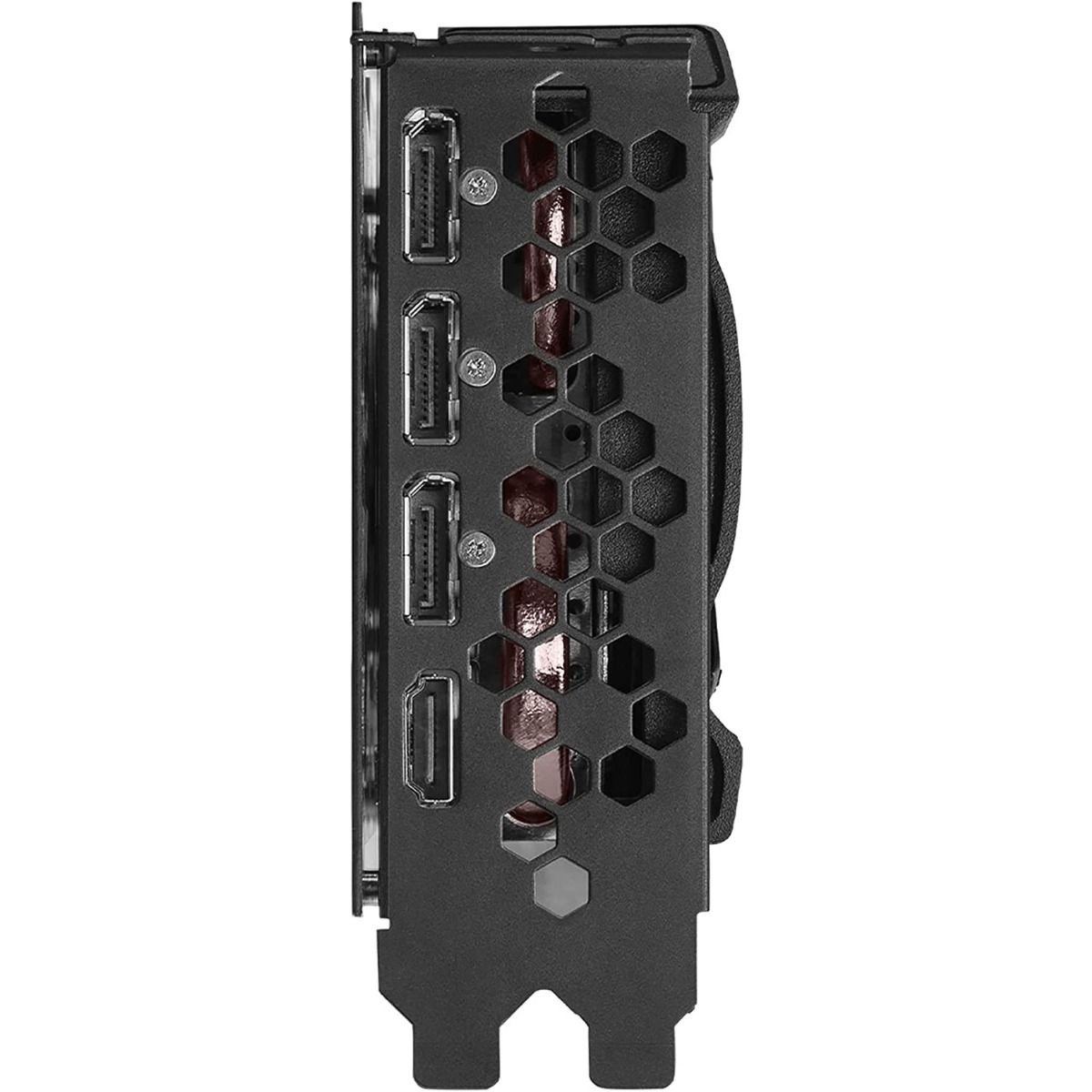

HDMI, DisplayPort x 3
Resolution & Refresh
Max Monitors Supported: 4
Max Digital : 7680x4320
Dimensions
Height: 4.38 in - 111.15 mm
Length: 11.23 in - 285.37mm
Width: 2.2 Slots
