NETGEAR Insight Management Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP
Switch Management
Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection
PHYSICAL SPECIFICATION
Weight (kg) : 5.03 kg
Dimensions (WxDxH) mm : 440 x 310 x 43.2 mm
TECHNICAL SPECS

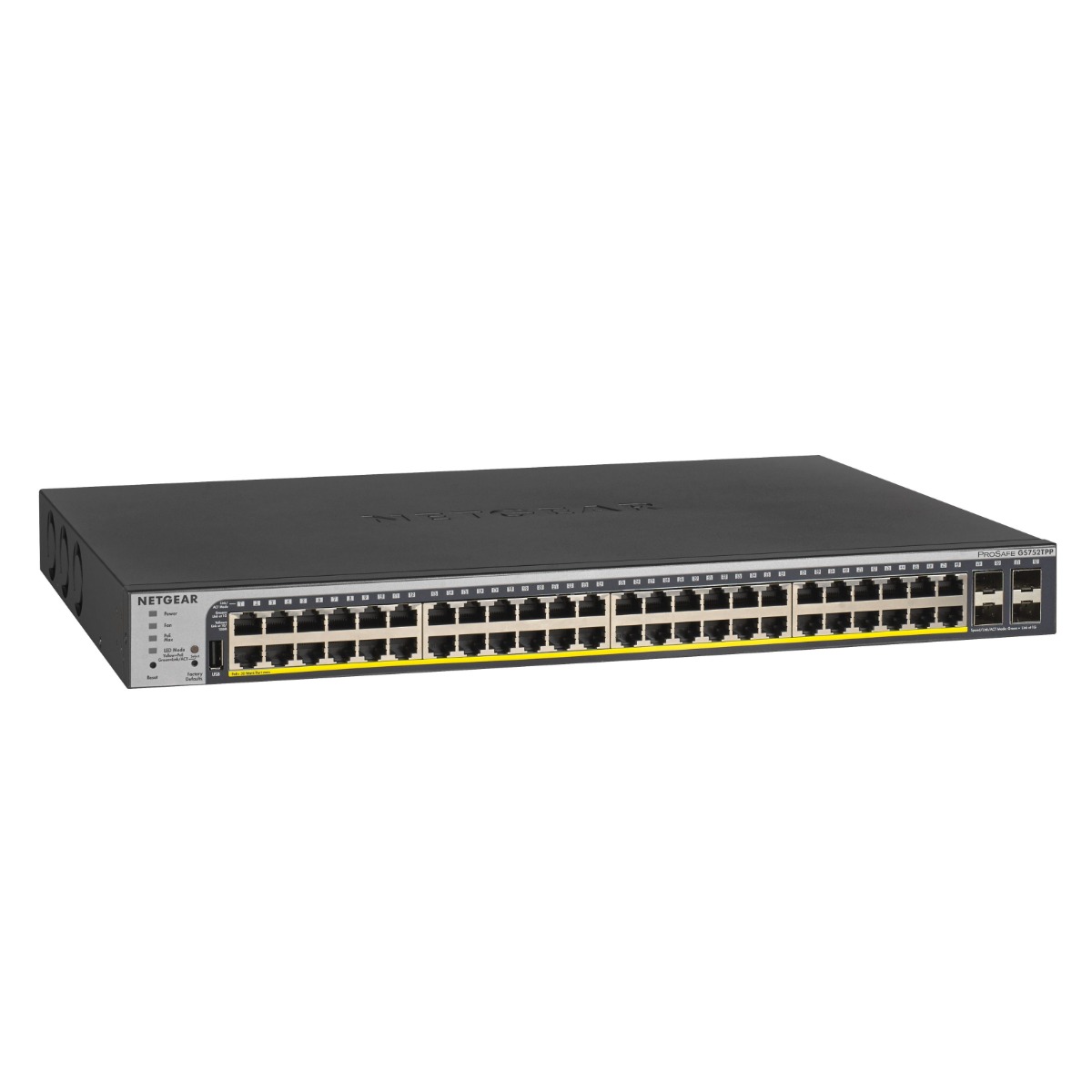

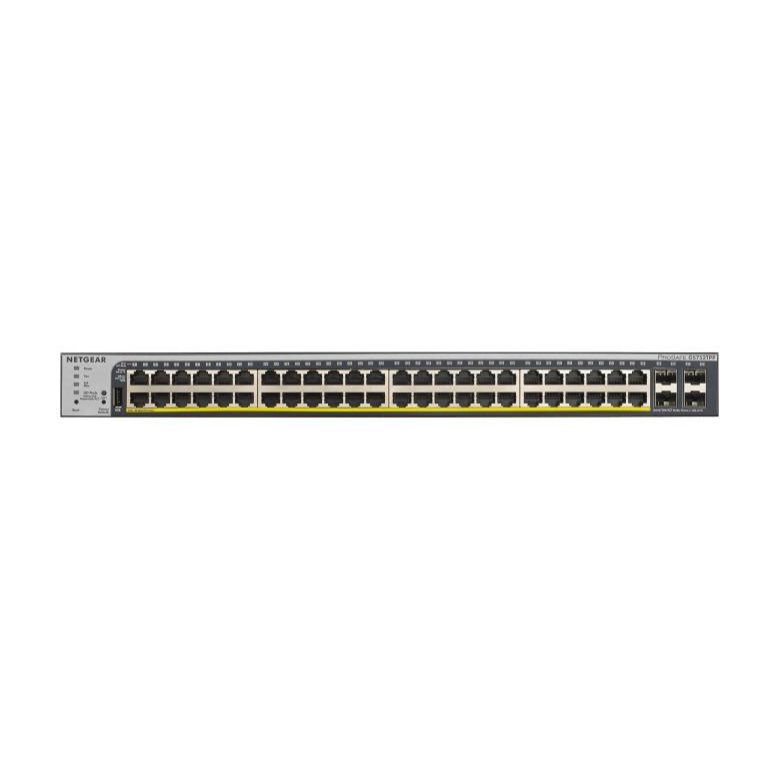

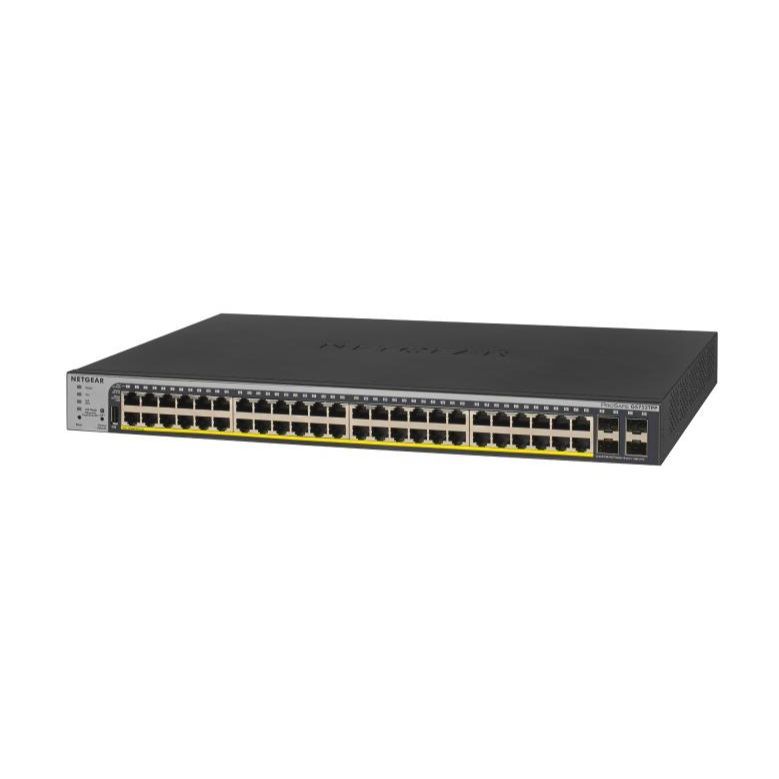

Model Description : 48-Port Gigabit PoE+ Smart Managed Pro Switch w/ optional Remote/Cloud Management and 4 SFP Ports (GS752TPP)
Management : Insight Remote/Cloud Manageable with 1-Year Insight subscription included
10/100Mbps ports : N/A
Gigabit ports : 48
SFP ports : 4
Number of PoE ports : 48
PoE+ (802.3at) : 48
Total PoE Power budget (Watts) : 760W
Max MAC entries : 16K
Buffer size : 1.5MB
VLAN (Number Supported) : 256
VLAN routing : Yes
Dynamic VLAN assignment : Yes
MLD Snooping : Yes
Static route : 32
Host ARP table : 512
EEE : Yes
DoS Prevention : Yes
Internal/External : Internal 100-240VAC 50-60Hz
Max consumption (Watts) : 861W
FAN : 3
Acoustic Noise Level @25C (dBA) : 39.74
Operating Temperature : 0° to 50° C
MTBF : 1,107,549 hours
ProSupport: CAT 1
