MSI'S RTX 2060 IS READY TO UNLEASH SUPREME POWER

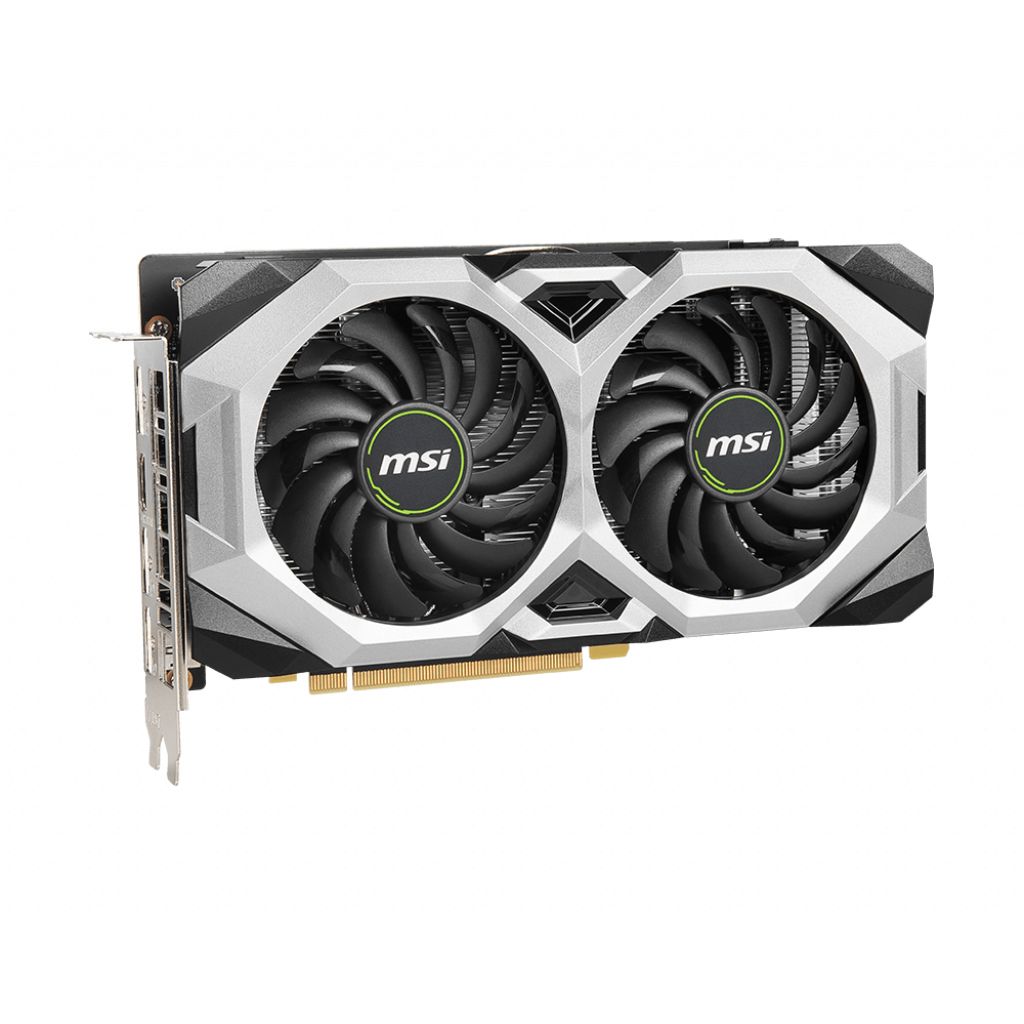

Meet the GeForce RTX 2060 Ventus GP OC straight from R&D at MSI, powered by the revolutionary turing architecture and RTX platform to bring you immense graphical performance, real-time ray tracing, AI and programable shading to bring you games like you've never seen them before. Returning with a fresh new dual torx 2.0 fan design, the ventus proudly displays it's industrial shapes in neutral colours fitting neatly into almost any build. Boasting 6GB of gloriously fast GDDR6 memory, incredible connectivity with 3x DisplayPort 1.4a ports and a single HDMI port allows you to connect multiple monitors to your setup and experience what it truly means to have your own entire ecosystem. Finally utilise MSI graphics technologies like dragon center and afterburner to tweak and tune your new GPU and be the best you can be. Whether your a gamer or a daily enthusiast the MSI 2060 Ventus will never let you down.

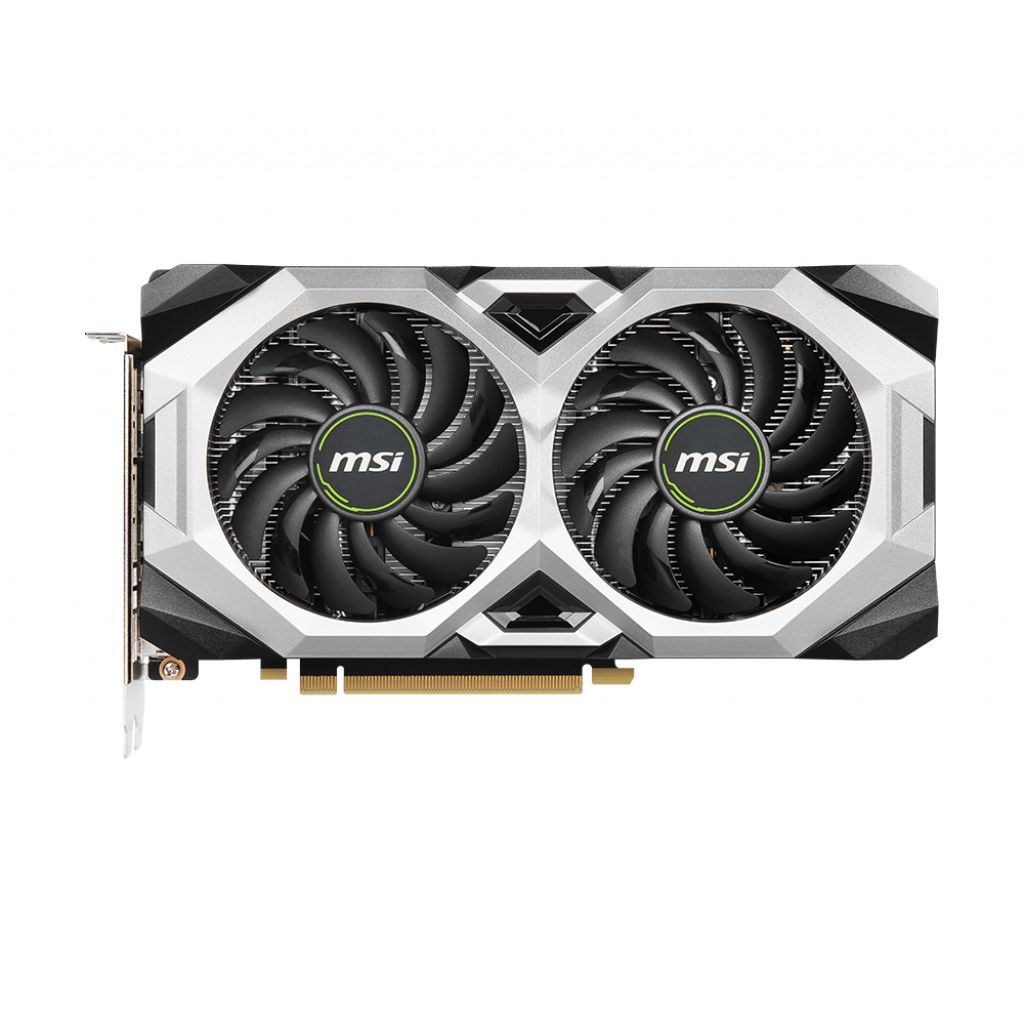

Award Winning TORX FAN 2.0
Using two of the award-winning TORX Fans 2.0 with double ball bearings, MSI VENTUS graphics cards provide years of top-notch cooling performance.
Traditional Fan Blades push down a steady airflow to the massive heatsink below.
INTELLIGENT SOFTWARE MAKES LIFE SIMPLER
MSI Afterburner is the world's most recognized and widely used graphics card Overclocking software. It gives you full control of your graphics card and enables you to monitor your system’s key metrics in real-time. The latest version of MSI Afterburner features OC Scanner for RTX 20 series graphics cards. OC Scanner is an automated function that will find the highest stable overclock settings for your card. Giving you a free performance boost for a smooth in-game experience thanks to higher FPS.
CONTROL TO SHOWCASE YOUR STYLE
With the latest version of Mystic Light Software, controlling all your RGB-lit components is easy. The software detects all compatible products from both MSI and other brands and lists them for you to control individually or linked together. With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.
TWEAK AND TUNE UNTIL YOUR HEARTS CONTENT
Eventually Dragon Centre will be the only MSI software you need to install for full functionality of your MSI Desktop, Graphics Card, Motherboard or even Gaming Gear. Thanks to a modular concept, the application will automatically detect new MSI hardware once added. Based on the hardware in your system it will offer the relevant software drivers for your specific setup.
UP TO 6 TIMES FASTER PERFORMANCE
The RTX GPUs are powered by the Turing Architecture, this gives you 6x faster performance over previous-generation graphics cards. This revolutionary architecture, combined with our all-new GeForce RTX™ platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You’ve never created and enjoyed games like this before.
Chipset: GeForce RTX 2060
Edition: GeForce RTX 2060 VENTUS GP OC
Manufacturing process: 12 nm
Cores & Clocks
Boost Clock: 1710 MHz
Video Memory (VRAM)
Memory Size: 6GB
Memory Type: GDDR6
Memory Clock: 14000 MHz
Memory Bus: 192 Bit
Cooling Solution: Dual Fan (2)

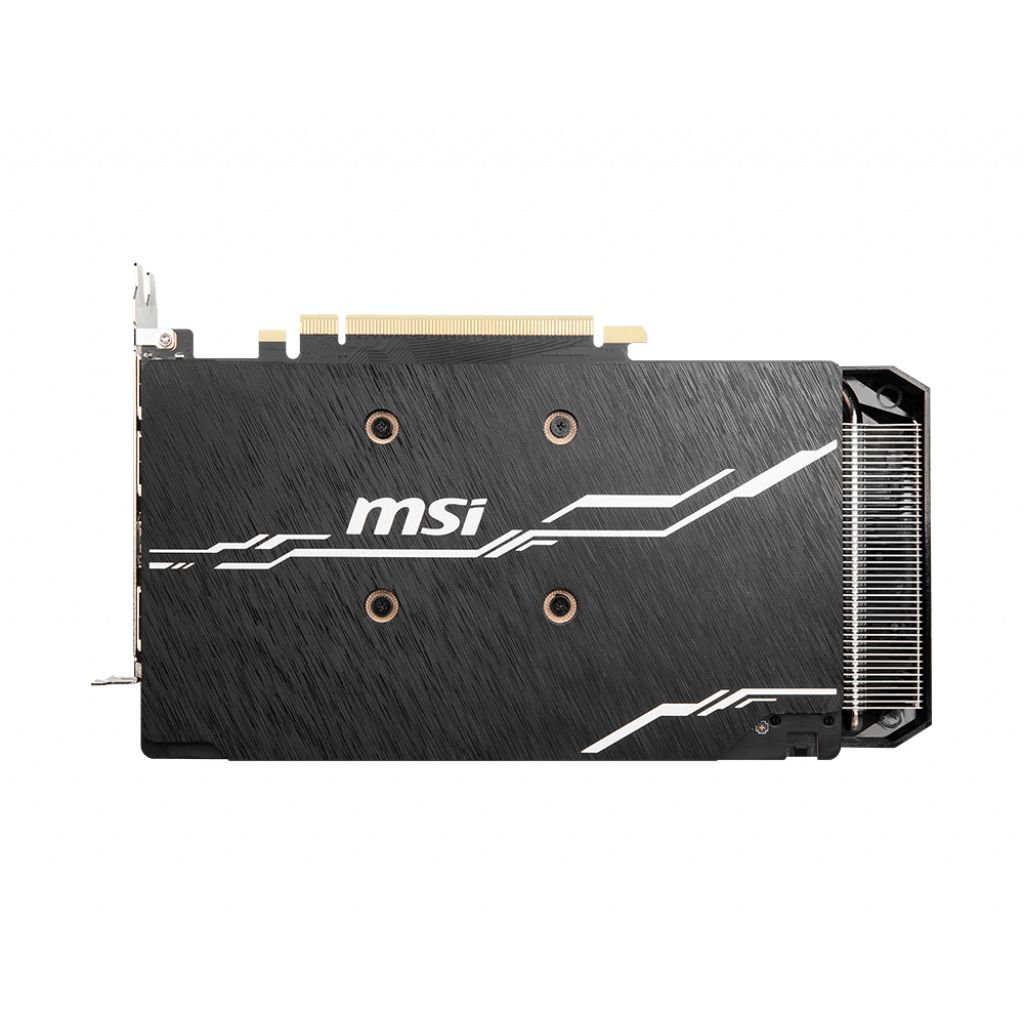

Included/Fitted Backplate: Yes
I/O & Connectivity
Interface: PCIe 3.0 (x16)

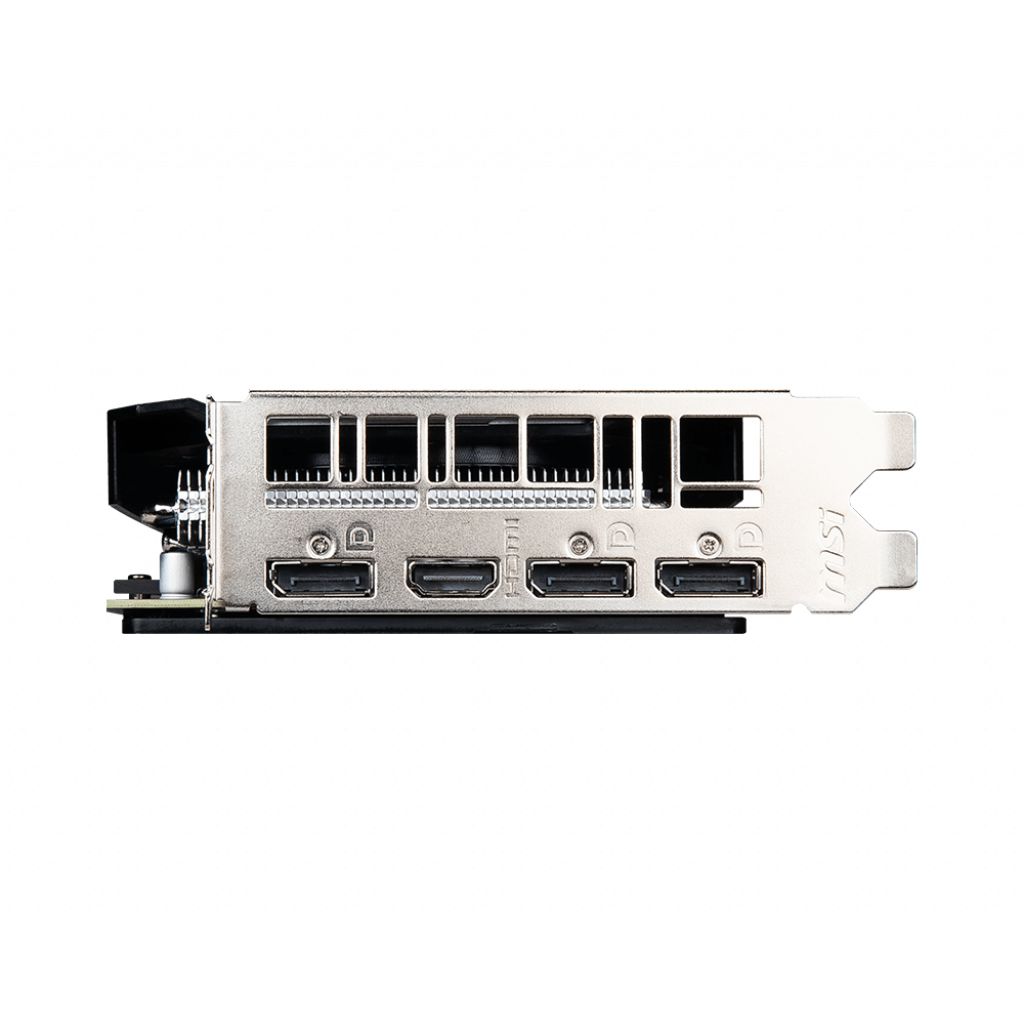

3 x DisplayPort 1.4a
1 x HDMI 2.0b
GeForce VR Ready: Yes
Microsoft DirectX Support: 12 API
HDCP Ready: Yes
Max. Concurrent Displays: 4 Displays
Maximum Digital Resolution: 7680x4320 (8K UHD)
Real-Time Ray Tracing: Yes
Power & Thermals
Graphics Card Power Connectors: 1 x 8-pin PCIe
Minimum Recommended PSU: 500 W
|7680 x 4320
3 x DisplayPort 1.4a
|1 x 8-pin PCIe
|231 x 128 x 42 mm
